XCSDMP70010, Telemecanique Sensors XCSDMP Safety Non Contact Switch, Plastic, Выключатель

Telemecanique Sensors Magnetic Switch

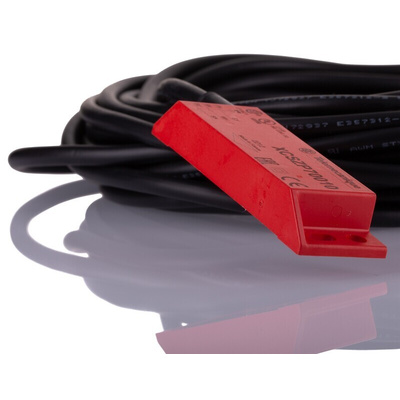

The Telemecanique sensors XCSDMP series magnetic non-contact switch has 2NC/1NO switch configuration. It is designed for monitoring the doors, covers, and guards of industrial machines with imprecise guiding and low inertia. This safety switch is ideal for machines subjected to frequent washing or liquid spray. It protects the operator by instantly stopping any dangerous movement as soon as the distance between the switch and its magnet is greater than 8mm.
Safety module
Allows multi-switch monitoring to safety category 4 solutions per EN954-1/ISO 13849-1
XPS-DMB can monitor 2 independent sensors and modules, XPS-DME can monitor 6 independent sensors and modules
2 safety outputs and 2 solid-state outputs for signalling to the process PLC
LEDs on the front face provide information on the monitoring circuit status
Dimensions: H99 x W22 x D114mm
IP20 protection on terminals and IP40 protection on the enclosure, per EN/IEC 60529
Note:
With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Features and Benefits

Actuation on 3 sides - face-to-face and face-to-side
8mm tolerance to misalignment (5mm for XCS-DMC)
LED versions have an LED in series with one N/C giving indication when guard is closed
Coded reed technology - switch cannot be totally defeated by a simple magnet
Rectangular plastic housing

Certifications

EC 947-1
EN 547-5-1
EN 547-5-3
EN 60204-1
EN 1088 (for magnetic switch only)
IEC 204-1
EN 292
EN 60204-1
EN954-1
EN1088 (for safety module only)
IP67 rated
BG certified
CSA certified
UL listed
