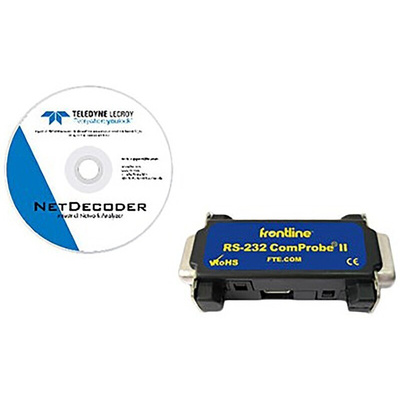

Teledyne LeCroy ND-232 Protocol Analyser RS232

Teledyne LeCroy NetDecoder™ Industrial Communication Analysers

NetDecoder™ is a passive and easy-to-use network monitor that helps less-skilled trouble-shooters understand what is happening on their communications networks. The Dashboard View, Network View Network View, Statistics Display and Frame Display are intuitive, easy to read, and quickly provide a wealth of information about the network. Although NetDecoder is simple to work with, it does provide a level of sophisticated and detailed information demanded by today’s network specialist.

NetDecoder is a must for:

• SCADA engineers


• System integrators


• Network engineers


• Maintenance engineers


• Field service personnel

NetDecoder's Node Statistics

• Packets transmitted and received


• Bytes transmitted and received


• DNS names


• Nodes in and out


• Utilisation information


• Broadcast information


• IP address and MAC address


• Named MAC address


• NetBios Name


• Assigned user friendly names for each node

Features and Benefits

• Captures, decodes, timestamps, filters and displays data, and detects protocol errors (indicated in red) simultaneously, all live and in real-time


• Data is also displayed in binary, octal, hex, and ASCII


• Familiar tree (Explorer style) protocol decode display with single-click protocol filtering


• Session notes and annotated bookmarks allow for quick identification of questionable messages


• Log data to single or multiple files


• USB interface – no external power needed


• Passive on the bus – does not interfere with regular traffic even when powered off


• Timestamps in microsecond range


• Expanded baud rate range capability


• Capture and view data, control signals and error conditions live in real-time


• Errors are highlighted to quickly spot problems

Applications

• Industrial control and SCADA design


• OEM development and test applications


• Process Control Monitoring


• Systems integration


• Field, maintenance and network engineering
