Vishay UV SMD LED with Silicone Lens

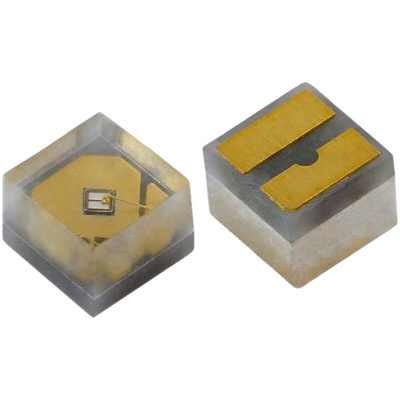

VLMU1610-365-135 is a ceramic based mid power UV LED with silicone lens for long life time. The package size is 1.6 mm x 1.6 mm and the radiant power up to 26 mW at 20 mA in a wavelength range of 362.5 nm to 370 nm.
• Ceramic SMT package with silicone lens
• Dimension (L x W x H) in mm: 1.6 x 1.6 x 1.4
• Forward current: up to 60 mADC
• Radiant power (typ.): 20 mW at 20 mA, 55 mW at 60 mA
• Die: InGaN
• Resin: silicone (water clear)
• Leads / terminations finish: gold plated (Au)
• Grouping parameters: Radiant power/Peak wavelength/Forward voltage
• Reflow soldering method
• MSL 3 according to J-STD-020
Applications
• Industrial curing
• Photocatalytic purification
• Poster printing curing
• Counterfeit money detector
• Blood detector
• Nail curing
• Teeth curing
Depending on the mode of operation, these devices emit highly concentrated non-visible ultraviolet light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions given in IEC 62471 “Photobiological Safety of Lamps and Lamp Systems”.
Ultraviolet (UV) LEDs, Vishay
