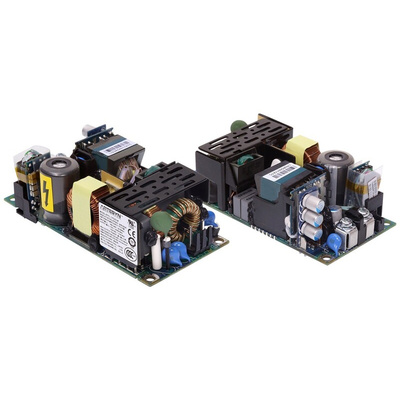

Artesyn Embedded Technologies Switching Power Supply, CPS255-M, 24V dc, 10.42A, 155W, 1 Output, 90 → 264V ac, Источник питания

250W AC-DC Power Supply, Single Output, CPS250-M Series

The CPS250-M series of single output open-frame AC-DC power supplies are offered in 12 V, 24 V or 48 V outputs with +10% Trim range. Each power supply comes with a 12 V fan output. All models feature ITE and medical safety approvals and accept a universal input of 90 V ac to 264 V ac. Its 2'' x 4'' x 1.29'' compact and high density design can deliver up to 155 W of output power with free air convection cooling, depending on operation conditions. Typical applications for these power supplies are light industrial systems and medical applications.

Features and Benefits

• Dual Input Fuse
• Designed for forced air and natural convection cooling
• Medical Type BF ready
• Active Power Factor Correction
• Built-in Class B EMI Filter
• Less than 1U high
• <500 mW no-load Power Consumption

CPS255-M - Data Sheet
