STMicroelectronics STEVAL-MKI173V1 for use with DIP24 Socket

LSM303AH e-Compass Module Adapter Board for DIP24 Socket, STMicroelectronics

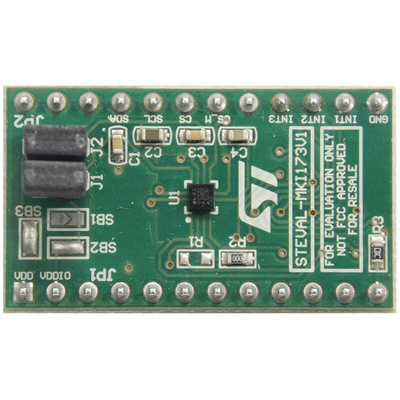

The STEVAL-MKI173V1 is an adapter board designed to evaluate the LSM303AH, ultra-compact high-performance e-compass 3D accelerometer and 3D magnetometer module. The board can be plugged into a standard DIP24 socket, providing access to the complete LSM303AH pinout.

This adapter is supported by the STEVAL-MKI109V3 motherboard, where you can use the downloadable graphical user interface (Unico GUI).

Digital Compass integrates 3D magnetic field channels and 3D acceleration channels
±50 gauss magnetic full scale
±2 g / ±4 g / ±8 g / ±16 g selectable acceleration full scale
16-bit data output
SPI / I²C serial interfaces
Analogue supply voltage 1.71 V to 1.98 V
Power-down mode / low-power mode
Programmable interrupt generators for free-fall, motion detection and magnetic field detection
Embedded temperature sensor
Embedded FIFO
