STMicroelectronics STEVAL-MKI176V1 for use with DIP24 Socket

LSM6DS3H iNEMO Inertial Module Adapter Board for DIP24 Socket, STMicroelectronics

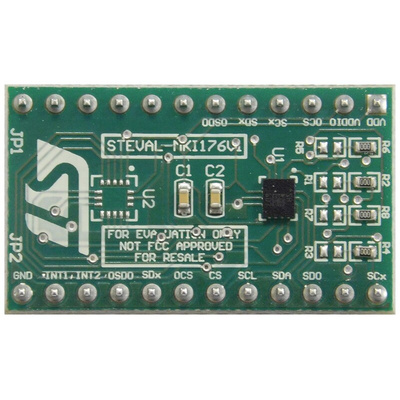

The STEVAL-MKI176V1 is an adapter board designed to evaluate the LSM6DS3H, iNEMO inertial module featuring a 3D accelerometer and 3D gyroscope. The board can be plugged into a standard DIP24 socket, providing access to the complete LSM6DS3H pinout. It comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboard, where you can use the downloadable graphical user interface (Unico GUI).

Current consumption: 0.85 mA in combo normal mode; 1.1 mA in combo high-performance mode
“Always-on” experience with low power consumption for both accelerometer and gyroscope
SPI or I²C interface with the main processor
Auxiliary SPI to support OIS applications
Electronic Image Stabilization (or EIS) / Optical Image Stabilization (OIS) support
Accelerometer output data rate up to 6.66 kHz
Gyroscope output data rate up to 3.33 kHz
Smart FIFO
±2 g / ±4 g / ±8 g / ±16 g full scale
±125 / ±245 / ±500 / ±1000 / ±2000 dps full scale
Analogue supply voltage 1.71 V to 3.6 V

iNEMO-Inertial Modules, STMicroelectronics

The iNEMO System-in-Package (SiP) inertial modules combine 3D Accelerometer, 3D Gyroscope in a 6-axis, and 3D Magnetometer in a combined 9-axis degrees of freedom solution. These motion sensors offer a compact, robust and easy-to-assemble. The inertial modules bring a high level of accuracy required for the most demanding applications.

STEVAL-MKI176V1, LSM6DS3H Adapter Board for Standard DIP24 Socket

LSM6DS3H, iNEMO Inertial Module: Always-on 3D Accelerometer and 3D Gyroscope
