STMicroelectronics STEVAL-MKI174V1 for use with DIP24 Socket

LIS2DS12 3-Axis Accelerometer Adapter Board for DIP24 Socket, STMicroelectronics

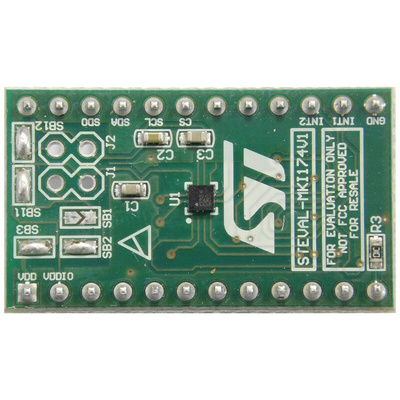

The STEVAL-MKI174V1 is an adapter board designed to evaluate the MEMS digital output motion sensor LIS2DS12, an ultra low-power high performance 3-axis "pico" accelerometer. The board can be plugged into a standard DIP24 socket, providing access to the complete LIS2DS12 pinout. It comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

This adapter is supported by the STEVAL-MKI109V3 motherboard, where you can use the downloadable graphical user interface (Unico GUI).

Ultra-low current consumption, different with output data rates
±2 g / ±4 g / ±8 g / ±16 g full scale
16-bit data output
Supply voltage 1.62 V to 1.98 V
Independent Input/Output supply (1.8 V)
High-speed I²C/SPI digital output interface
Embedded temperature sensor
256-level FIFO buffer
Motion and acceleration detection including free-fall, wakeup, single and double-tap detection

Accelerometers, STMicroelectronics

STEVAL-MKI174V1, LIS2DS12 Adapter Board for Standard DIP24 Socket

LIS2DS12, MEMS Digital Output Motion Sensor: Ultra-Low-Power High-Performance 3-Axis \
