502439-0300, Molex, CLIK-Mate Male Connector Housing, 2mm Pitch, 3 Way, 1 Row, Корпус разъема

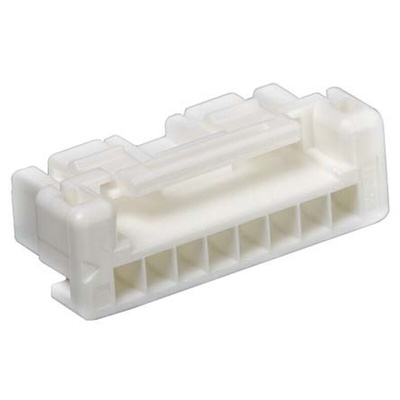

Molex 2.00 mm CLIK-Mate Crimp Plug Housings

CLIK-Mate 2.00 mm crimp plug housings with a robust design for use with CLIK-Mate 2.00 mm SMT PCB receptacles. These CLIK-Mate plug housings have a dual inner positive locking mechanism that provides an audible click when a secure mating connection has been made. The housings have mating guides and keying to prevent mismating. The fork style crimp terminals for these housings require purchasing separately.

Features and Benefits

• Robust design
• Dual inner positive locking mechanism for mating assurance
• Polarization features to prevent mismating

Applications

These CLIK-Mate 2.00 mm connectors are ideal for use in a wide range of applications in several industries. Applications include automotive head lamps and interior mirrors, industrial scanners, smart grid meters, LED light modules, medical patient monitors, surgical equipment and LCD & TV panels

Molex 2.00 mm CLIK-Mate Wire to Board Connector System

CLIK-Mate 2.00 mm wire to board connector system with a rugged design and a high current carrying capability of 3.0 A and 250 V. The 2.00mm CLIK-Mate connector system provides a secure electrical connection with a low insertion force. Dual inner positive locks produce an audible click when the connectors are mated providing reliable mating assurance. The 2.00mm CLIK-Mate connector system consists of SMT PCB receptacles, crimp housings and crimp contacts with a low insertion force tuning fork design. These CLIK-Mate connectors are ideal for use in applications that require a connector with robust features and a high pin count that occupies less space

CLIK-Mate 2.0mm Crimp Plug Housing - Line Drawing

CLIK-Mate Wire to Board Connector System
