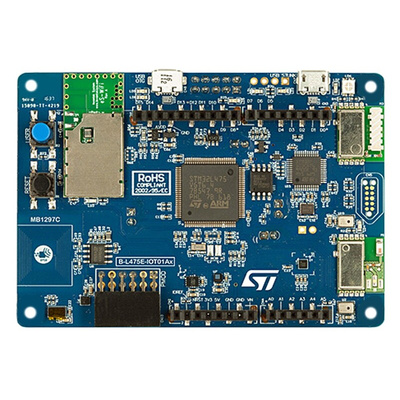

B-L475E-IOT01A2, STMicroelectronics Discovery Node A2 STM32L475VG Bluetooth Smart (BLE), Near Field Communication (NFC), RF Transceiver,

STMicroelectronics Development Kit

The STMicroelectronics development discovery kit is an 868MHz for Arduino, internet of things. The IoT node allows users to develop applications with a direct connection to cloud servers. This kit enables a wide diversity of applications by exploiting low power communication, multiway sensing and Arm Cortex -M4 core-based STM32L4 series features. The support for Arduino Uno V3 and PMOD connectivity provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Features and Benefits

Consist of 1Mbyte of flash memory and 128Kbytes of SRAM
64-Mbit Quad-SPI (Macronix) Flash memory
Bluetooth V4.1 module (SPBTLE-RF)
Dynamic NFC tag based on M24SR with its printed NFC antenna
2 digital omnidirectional microphones (MP34DT01)
Capacitive digital sensor for relative humidity and temperature (HTS221)
High-performance 3-axis magnetometer (LIS3MDL)
3D accelerometer and 3D gyroscope (LSM6DSL)
Time-of-flight and gesture detection sensor (VL53L0X)
2 push buttons (user and reset)
USB OTG FS with Micro-AB connector
Low-power-programmable RF module
802.11 b/g/n compliant Wi-Fi® module from Inventek Systems
260-1260 hPa absolute digital output barometer (LPS22HB)

Applications

IoT
Wireless communication
Embedded systems

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

B-L475E-IOT01A2 Datasheet
