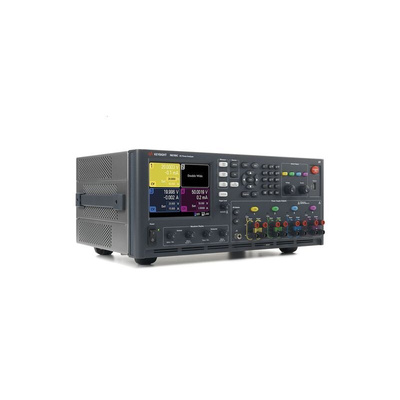

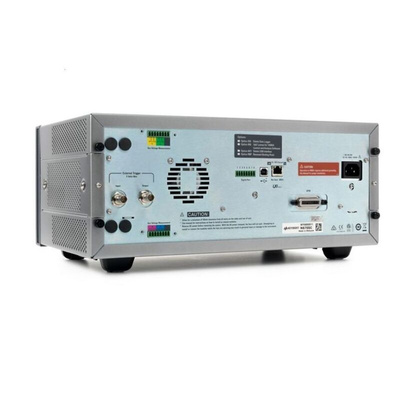

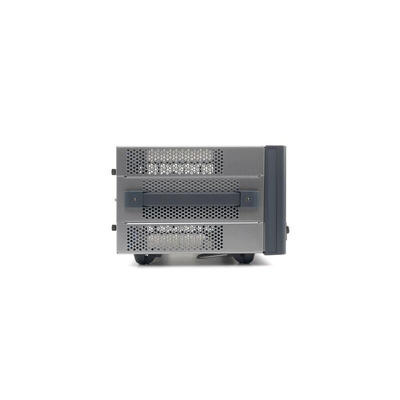

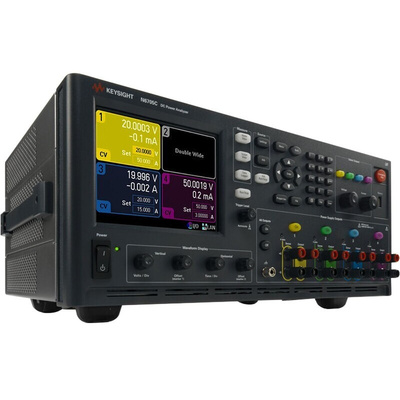

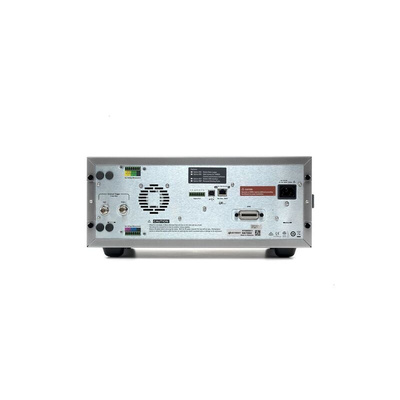

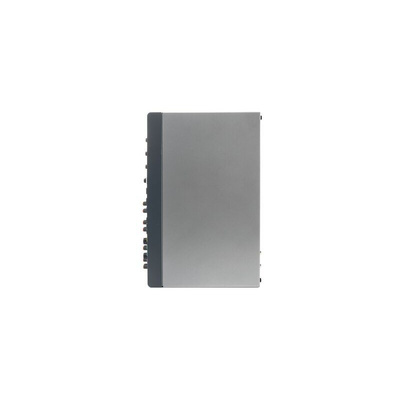

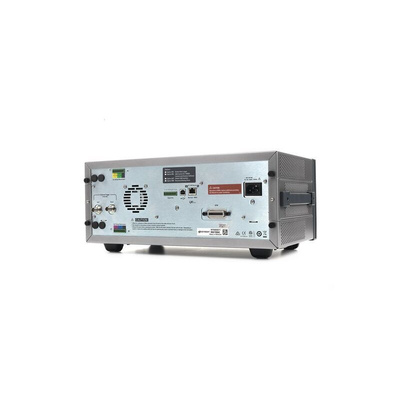

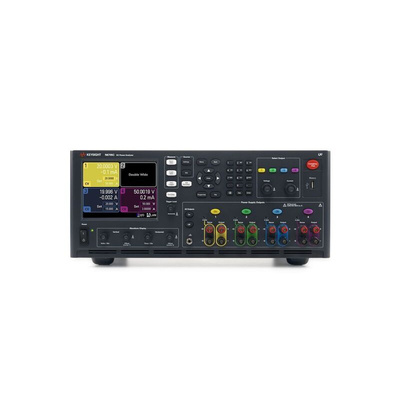

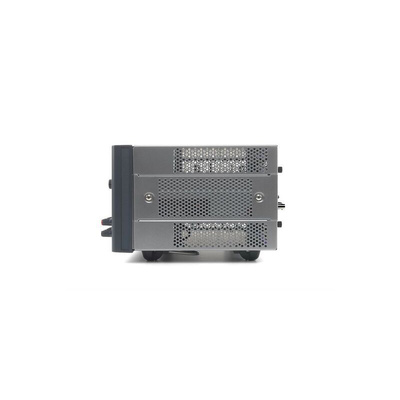

Keysight Technologies N6705C DC Power Analyzer, Анализатор

Keysight Technologies DC Power Quality Analyser

The Keysight Technologies DC power analyser provides unrivalled productivity gains for sourcing and measuring DC voltage and current into the DUT (device under test) by integrating up to 4 advanced power supplies with DMM, Scope, Arb, and Data Logger feature. It eliminates the need to gather multiple pieces of equipment and create complex test setups including transducers (such as current probes and shunts) to measure current into your DUT. The DC power analyser also eliminates the need to develop and debug programs to control a collection of instruments and take useful measurements because all the functions and measurements are available at the front panel. For even greater control and analysis functions, the DC Power analyser can be used with the 14585A Control and Analysis software. When automated bench setups are required, the fully programmable over GPIB, USB, LAN and is LXI compliant. This offers a flexible configuration to meet your power sourcing and analysis requirements.

Features and Benefits

Ideal for R&D testing and design validation
Large colour graphic display for easy viewing of complex data
Connections and controls color-coded to the display for a fast and error-free setup
4-slot mainframe holds up to 600W of total power and up to 4 modules
Voltmeter accuracy- Up to 0.025% +50μV, up to 18 bits
Ammeter accuracy- Up to 0.025% +8nA, up to 18 bits
Arbitrary waveform generator function- Bandwidth up to 100kHz, output power up to 500W
Absolute maximum current measurement is 50A
Scope function- Digitizes voltage and current at up to 200kHz, 512kpts, up to 18 bits
Data logger function- Measurement interval from 20μs to 60 seconds, maximum of 500M readings per data log
4GB of non-volatile data storage for data log, scope traces, instrument settings

N6700 Modular Power System Family
