Schurter Filtered IEC Connector 3-100-776, Фильтр

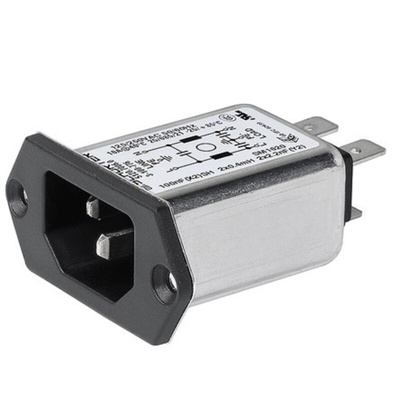

Schurter 5120 Series IEC Filter With Plastic Flange

Schurter 5120 IEC Filters are a compact design with a plastic flange. The plastic flange is modernized to eliminate the bevel around the inlet, providing an attractive flat design that nearly covers the entire surface of the metal flange of the filter case. These IEC filters offer front, rear and side mounting. Screw-on version from front or rear side, snap-in version from front Side, PCB Version from rear side.
PCB mounting, earth terminal. The filters also offer optimal sheilding due to the closed filter case.

Features

Compact high performance filter
Plastic flange
Designed for standard and medical applications
Variants for protection class I and II

Applications

Ideal for compact, high density switching power supplies with high transient loads
Suited for medical equipment according to IEC 60601-1
Datacom equipment, medical and measurement instruments, industrial appliances
Protection Class II versions are especially well-suited for medical equipment intended for use in the home according to IEC 60601-1-11

Approvals

VDE Certificate Number: 40016382
UL File Number: E72928
CCC File Number: 2010010204438235

Schurter Range

Panel mount, IEC inlet plugs with integral mains filter, ultra compact design.

Note

The fuse drawer is not included and must be ordered separately. Suitable for Ø5x20mm fuse size.
