N2142A, Keysight Technologies InfiniiVision Series 1000/3000 X Oscilloscope Probe, Passive Type, 75MHz, 1:1, 1:10, BNC Connector, Щупы для осциллографа

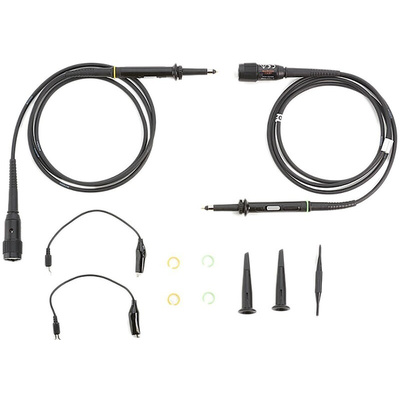

Keysight Technologies Oscilloscope Probe, 1 or 10MΩ Input Resistance, 1.3m Cable Length - InfiniiVision Series - N2142A

Poke around for issues in your circuitry design and catch glitches in a jiffy with this oscilloscope probe from Keysight Technologies. You can change between an attenuation ratio of 10:1 or 1:1, so you can switch up your settings according to your needs. The large bandwidth of 75MHz helps you achieve reliable signal measurements every time. This model is compatible with all InfiniiVision series oscilloscopes with a 1MΩ input, so it's a versatile addition to your toolbox.

• Cable length of 1.3m for hassle-free connections at your bench
• Input resistance of 1 or 10MΩ for versatility

Applications

• Electrical engineering
• Laboratory testing
• Research and development

How should I calibrate this probe?

By calibrating this probe to have an input impedance of 1MΩ paralleled by 20pF, you'll get correct readings the first time.

What's the advantage of oscilloscopes in the InfiniiVision series?

The InfiniiVision series of oscilloscopes delivers fast waveform update rates to give you real-time readings in a flash. This range offers high functionality even at lower bandwidths to ensure your equipment is in good working order.

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.

N2140A N2142A Passive Probes Quick Start Guide
