Digilent 410-251 Programming Module for use with FPGA Devices

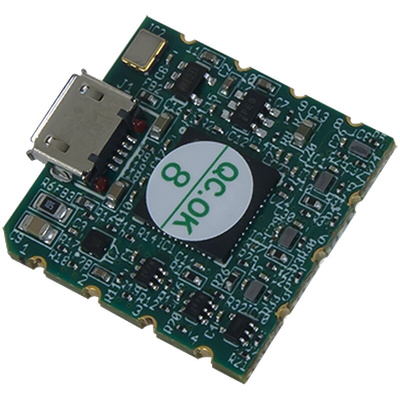

JTAG-SMT2 SMT Programming Module

The JTAG-SMT2 surface-mount programming module allows high-speed programming of Xilinx FPGA devices from a host PC. Users can solder the module directly onto a target board like any other component. Note: The JTAG-SMT2-NC part (RS 134-6473) does not have a USB connector fitted.

Features

• Compatible with all Xilinx tools
• Compatible with IEEE 1149.7-2009 Class T0 - Class T4 (includes 2-Wire JTAG)
• On-board ADP123AUJZ 300mA voltage regulator
• Separate Vref drives JTAG/SPI signal voltages
• Vref can be any voltage between +1.8V and +5V
• USB 2.0 HS port drives JTAG/SPI bus at up to 30Mbit/sec
• JTAG/SPI frequency settable by user
• PC connector: MicroUSB (JTAG-SMT2 only)
• GPIO pin allows processor reset of Xilinx Zynq platform\n
• SPI programming modes 0/2 up to 30Mbit/sec, modes 1/3 up to 2Mbit/sec
• Fully supported by Digilent's Adept software and Adept SDK
• Board dimensions: 22.75 x 21.5mm

RS Product Codes

• 134-6434 JTAG-SMT2 SMT Module
• 134-6473 JTAG-SMT2-NC SMT Module (without USB connector)

Note

This module is not needed for Digilent Xilinx FPGA boards as they have this functionality built-in.

An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.

JTAG-SMT2 Programming Module Reference Manual

Manual - 410-251
