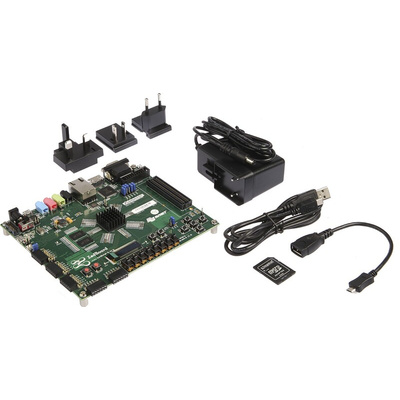

Digilent Zedboard Zynq-7000 Soc Development Kit 410-248

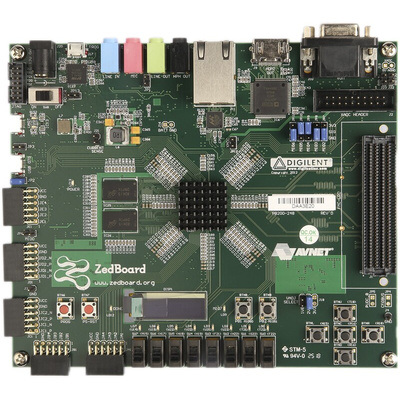

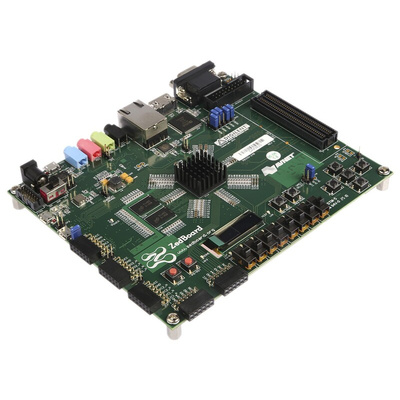

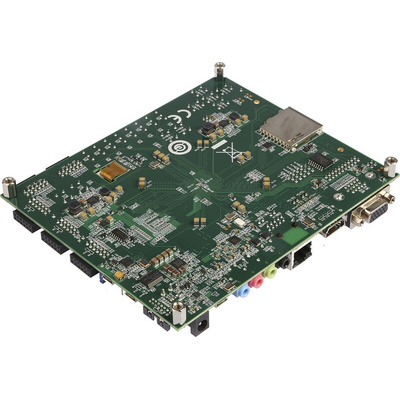

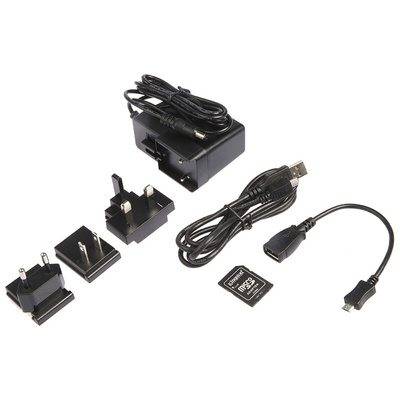

The Digilent ZedBoard Zynq®-7000 is a low-cost development board for the Xilinx Zynq-7000 SoC. This board contains everything necessary to create a Linux, Android, Windows, or other OS/RTOS-based design. Several expansion connectors expose the processing system and programmable logic I/Os for easy user access. ZedBoard is supported by the www. Zedboard. Org community website where users can collaborate with other engineers working on Zynq designs. With the help of ZedBoard and the Zynq-7000 AP SoCs tightly coupled ARM processing system and 7-series programmable logic to create unique and powerful designs.
Zynq-7000 SoC XC7Z020-CLG484-1
Onboard MT41K128M16HA-15E:D 512MB DDR3 SDRAM memory
Onboard S25FL256S 256Mbit Quad-SPI serial flash memory
30 x 11mm 128 x 32px OLED display panel
Onboard ADAU1761 I²S audio CODEC
Onboard CY7C64225 USB-UART bridge controller
SD card socket
Onboard USB-JTAG Programming via microUSB connector
RJ45 socket for 10/100/1000 Ethernet
USB OTG 2.0 via microUSB connector
LPC FMC connector
HDMI 1080p socket
VGA (12-bit colour) DE15 socket
4 x 3.5mm jack sockets for the microphone, line-in, line out, and headphones
5 x 12-pin Pmod™ expansion connectors
Reset pushbutton
Programming pushbutton
8 x user slide-switches
7 x user pushbuttons
8 x user LEDs

Features and Benefits

Dual-core ARM Cortex™-A9
512 MB DDR3
256 MB Quad-SPI flash
Onboard USB-JTAG programming
Support 10/100/1000 Ethernet
USB OTG 2.0 and USB-UART

Applications

Video processing
Reconfigurable computing
Motor control
Software acceleration
Linux/Android/RTOS development
Embedded ARM processing
General Zynq-7000 AP SoC prototyping

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
