Digilent 410-328-35 Cmod A7 Artix-7 Module, Модуль

Digilent Cmod Module

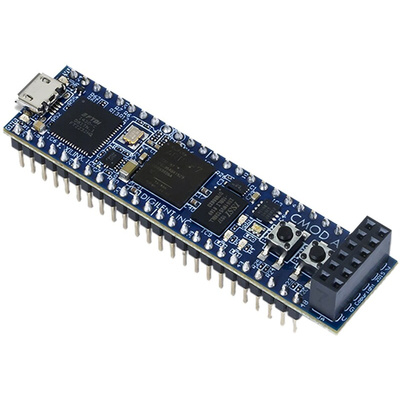

The Digilent Cmod module is a small, 48-pin DIP form factor board built around a Xilinx Artix 7 FPGA. The board also includes a USB-JTAG programming circuit, USB-UART bridge, clock source, Pmod host connector, SRAM, Quad SPI flash, and basic I/O devices. These components make it a formidable, albeit compact platform for digital logic circuits and MicroBlaze embedded softcore processor designs.
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to design even after the device is soldered into a PCB.

Features and Benefits

33280 logic cells in 5200 slices (each slice contains 4 x 6-input LUTs and 8 x flip-flops)
1800Kbit fast block RAM
5 x clock management tiles, each with a phase-locked loop (PLL)
90 x DSP slices
Internal clock speeds exceeding 450MHz
Onboard IS61WV5128BLL-10BLI 512KB SRAM
Onboard N25Q032A 4MB Quad-SPI flash memory
MicroUSB connector
Onboard FT2232HQ USB-UART bridge
2 x user LEDs
User RGB LED
2 x user pushbuttons
48-pin DIP connector with 44 x GPIO and 2 x analogue inputs
Standard Pmod 2 x 6-pin connector
Power supply is either from USB or external ranging between 3.3V and 5.5Vdc connected to DIP pins

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Cmod A7-35T FPGA DIP Module Reference Manual
