SR8, Figaro Gas Sensor Mounting Socket

Figaro Gas Sensor PCB Mounting Sockets

A range of durable PCB mounting sockets suitable for Figaro gas sensors. The sockets hold the sensors securely in place and can be used for over 100 insertion and removal cycles. The following types are available:
SR2 for TGS8xx Gas Sensors (6-pin)
SR4 for TGS8xx Gas Sensors (6-pin with mounting ears)
SR6 for TGS24xx & TGS26xx Gas Sensors (4-pin with locking tabs)
SR8 for TGS38xx Gas Sensors (3-pin polarised)

PCB Mounted Gas Sensors

Operating conditions in which Sensors are used will vary with each customer's application. Gas and oxygen sensors are not authorised for use as critical components in life support applications wherein a failure or malfunction of the products may result in injury or threat to life. Non-calibrated PCB gas sensors will not operate properly if not calibrated prior to usage.

Semiconductor gas sensors for gas detection, air quality control, HVAC, appliance and automotive industries. Characteristics of the products in this range are small size, low cost, long life, low power consumption and no maintenance requirement

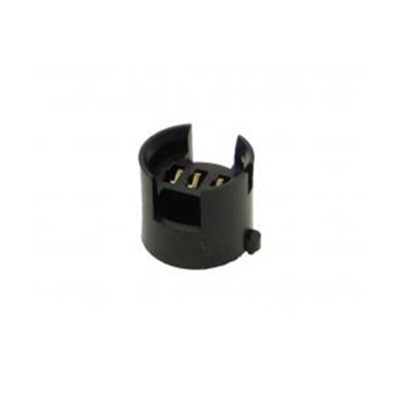

SR8 Socket for TGS38xx Gas Sensors
