RS PRO LED Stroboscope, 1μs Sample Time, Стробоскоп

RS PRO LED Stroboscope, Sample Time 1 μs

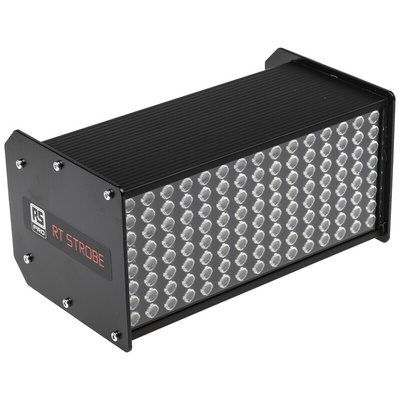

This LED stroboscope from the RS PRO range uses high-performance LEDs that produce a brightness of up to 7500 lux. This makes it a robust option for measuring rotational speeds and inspecting machines in challenging industrial environments.

The stroboscope's configuration of 120 LED lights gives you a powerful, even light intensity for use on areas of 300 x 500 mm. To illuminate an area larger than this, simply connect two or more units using the dedicated output plug. You can select from two trigger inputs to rapidly switch between different trigger sources for a flash rate from 0 and 120,000 flashes per minute (FPM). You can also manually set the brightness of the LED according to your needs.

This product is specially designed for maintenance work, commissioning and inspections. Thanks to its light intensity and the ability to connect multiple stroboscopes, it's particularly suitable for demanding applications in industries such as printing.

Features and Benefits

• LED stroboscope

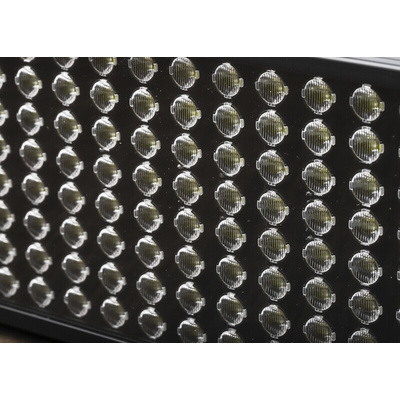

• Consists of 120 LED lights
• Area illumination of 300 mm x 500 mm
• Frequency range of 0 to 120,000 FPM
• Light emission of 7500 lux at 300 mm
• Length of 224 mm
• Width of 130 mm
• Height of 112 mm
• Weight of 1.3 kg
• Minimum operating temperature of 0°C
• Maximum operating temperature of +40°C

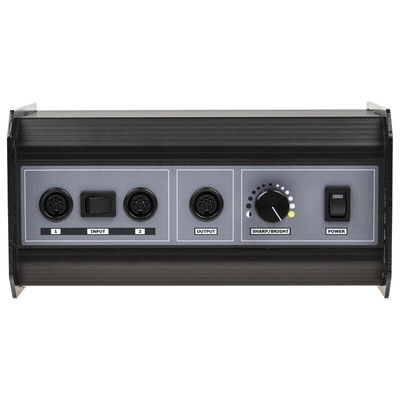

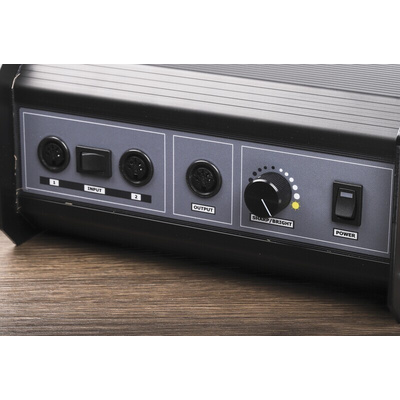

• Two selectable 5-pin DIN plugs for trigger input and / or power
• One 5-pin DIN output plug for parallel connection

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
