05736, SIP MIG Welder 30 → 135A, Сварочный аппарат

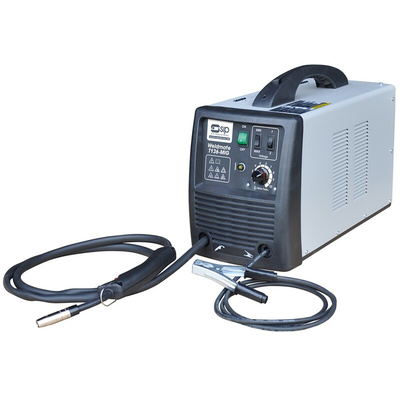

T136 Weldmate Gas/Gasless MIG Welder

SIP Weldmate T136 Gas / Gasless MIG Welder is part of the excellent and comprehensive range of welding kits providing superb performance and finishing. The Weldmate T136 welders give you excellent versatility is convenient giving you portability and used by a serious home or trade welders. The T136 has 0.6 mm to 0.8 mm welding wire sizes with solid or flux cored wire sizes. The MIG Welder provides a 0.7 mm to 5.4 mm weld thicknesses (mild steel) and is ready to use in gasless mode.

FEATURES and BENEFITS:

T136 Gas / Gasless MIG Welder
4 Power settings
Supply voltage 230 V (13 A)
Open circuit voltage – 30 V dc maximum
Output current 30 A to 135 A (peak)
Output voltage – 15.5 V to 18 V
Wire diameter – 0.6 mm to 0.8 mm
Wire size – 0.7 kg / 0.5 kg
Solid / Flux-cored wire
Weld thickness 0.7 mm to 5.4 mm
Wirespeed 16 m per minute maximum
Welds – mild steel, stainless steel and aluminium
Duty cycle – 80 A at 20% and 46 A at 60%
Can be used in gasless mode
Thermal overload insulation
Insulation class H
Protection IP21S
Packaged dimensions 375 x 305 x 630 mm
Weight 22 kg
