05722, SIP Welder 30 → 250A, Сварочный аппарат

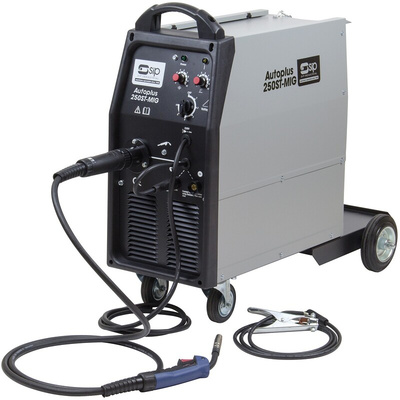

Autoplus 250ST MIG Welder

SIP Autoplus 250 ST dual purpose MIG Welder is part of the excellent and comprehensive range of welding kits providing superb performance and finishing. The Autoplus 250 welders give you excellent versatility is convenient giving you portability as is wheel mounted. The dual purpose MIG welder has 6 output power settings excellent for welding with or without gas. The dial purpose welder is excellent for welding on mild and stainless steel including aluminium.

FEATURES and BENEFITS:

Autoplus 250 ST Dual purpose MIG welder
6 Power settings
230 V (25 A) supply
Maximum open circuit voltage 34 V dc
Output voltage 15.5 V to 24.5 V
Output current 30 A to 250 A (peak)
Wire diameter 0.6 mm to 1 mm
Wire spool size 5 kg to 15 kg
Solid / Flux-cored wire
Weld thickness 0.8 mm to 10 mm
Maximum wire speed 13 m / min
Duty cycle – 210 A @ 30%, 148 A @ 60%, 115 A @ 100%
Welds, Mild and stainless steel, Aluminium
Welds with or without gas
Insulation class H
Protection IP21S
Weight 35 kg
Packaged dimensions 810 x 490 x 960 mm
Low current performance
Wheel mounted
