Silicon Labs Mighty Gecko EFR32MG12 RF Transceiver Module SLWRB4163A

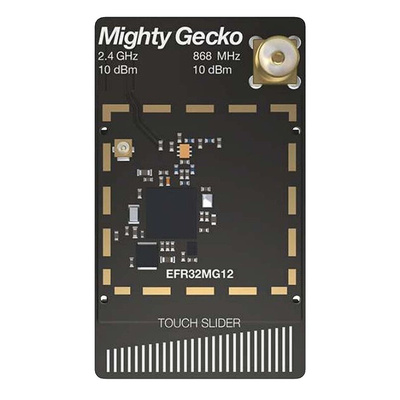

EFR32MG12 Mighty Gecko 2.4GHz/868MHz Dual-Band Radio Board

The BRD4163A Mighty Gecko Dual-Band Radio Board supports the development of Zigbee, Thread, Bluetooth Low-Energy and proprietary wireless applications. It is supported by the Simplicity Studio suite of development tools.

• EFR32MG12 Cortex-M4F core SoC with 1MB Flash memory, 256KB RAM (EFR32MG12P433F1024GL125)
• RF Operating Frequency: 2.4 to 2.4835GHz and 863 to 870MHz ISM Bands
• RF Output Power: +10dBm
• PCB antenna (2.4GHz) with optional U.FL connector
• SMA connector for external antenna (868MHz)
• Touch Slider
• Crystals for LFXO and HFXO: 32.768 kHz and 38.4 MHz
• Connectors for Wireless Starter Kit Mainboard
• Powered from Starter Kit Mainboard
• Dimensions: 51 x 30mm

Note

Works in conjunction with an SLWSTK6000A Mighty Gecko Wireless Starter Kit, RS Product Code 915-6604

Approvals

FCC (2.4GHz band), ETSI (Both bands)

Datasheet - SLW
