Silicon Labs Mighty Gecko RF Transceiver Starter Kit for EFR Mighty Geocko 2.4GHz SLWSTK6000B

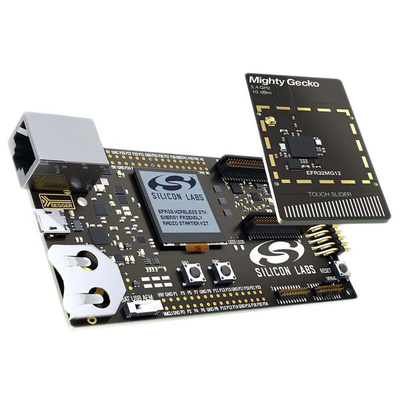

EFR32MG12 Mighty Gecko ZigBee/Thread Wireless Starter Kit

The Silicon Labs Mighty Gecko family (EFR32MG) of System-On-Chips (SoC) integrates a 2.4GHz single- or 2.4GHz/Sub-1GHz dual-band radio with a 32-bit ARM Cortex-M4 core for ZigBee and Thread Mesh networking. Simplicity Studio provides comprehensive wireless development and debug tools such as Energy Profiler, Configurator, Application Builder and Network Analyser.

BRD4001A Wireless Starter Kit Mainboard

• Ethernet and USB connectivity
• Advanced Energy Monitor
• Virtual COM Port
• Packet Trace Interface support
• SEGGER J-Link on-board debugger
• ARM Coresight 19-pin trace/debug header
• Debug Multiplexer supporting external hardware as well as radio board
• Si7021 Relative Humidity and Temperature sensor
• Ultra low power 128 x 128 pixel memory LCD display
• User LEDs / Pushbuttons
• 20-pin header for expansion boards
• Header for Radio Board
• Breakout pads for direct access to all radio I/O pins
• Power supply: USB or CR2032 coin cell

Radio Boards

• 40MHz EFR32MG12 Cortex-M4F core SoC with 1MB Flash memory, 256KB RAM (EFR32MG12P332F1024GL125)
• RF Frequency Band: 2.4GHz ISM band
• RF Power Output: +19dBm (BRD4161A)
• RF Power Output: +10dBm (BRD4162A)
• PCB antenna

Additional Radio Boards available separately

• 134-7241 SLWRB4163A 2.4GHz/868MHz Dual-Band for Bluetooth Smart, ZigBee, Thread
• 134-7242 SLWRB4164A 2.4GHz/915MHz Dual-Band for Bluetooth Smart, ZigBee, Thread

Supplied with

3 x BRD4001A Wireless Starter Kit Mainboards, 3 x BRD4161A EFR32MG 2.4GHz 19dBm Radio Boards, 3 x BRD4162A EFR32MG 2.4GHz 10dBm Radio Boards, 3 x AA Battery holders, 3 x USB-A to USB Mini-B cables.

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
