FLUKE-1732/EUS, Fluke 1732/EUS Three Phase Power Energy Monitor & Logger, Bluetooth, USB A, USB Mini, Wi-Fi, Анализатор

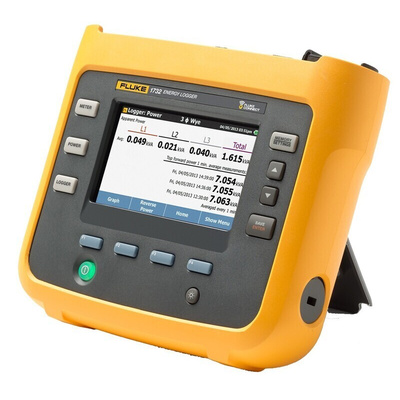

Fluke 1732 3 phase Electrical Energy Logger

Energy logging is now within your reach—discover where you’re wasting energy, optimize your facility’s energy use and reduce your bill. The new Fluke 1732 Three-Phase Electrical Energy loggers introduce a new simplicity to discovering sources of electrical energy waste. Discover when and where energy in your facility is being consumed; from the service entrance to individual circuits.
Profiling energy usage across your facility helps you identify opportunities for energy savings, and provides you with the data you need to act on them. The new Energy Analyse software package allows you to compare multiple data points over time to build a complete picture of energy usage, which is the first step to reduce the cost of your energy bill.

Features and Benefits

• Key Measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
• Bright, colour touch screen, perform convenient in-the-field analysis and data checks with full graphical display
• Comprehensive Logging: More than 20 separate logging sessions can be stored on the instruments.
• Optimised User Interface: Quick, guided, graphical setup ensures that you are capturing the right data every time, and the intelligent verification function indicates that correct connections have been made, reducing user uncertainty
• Convenient Instrument Powering: Power instrument directly from the measured circuit
• Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
• Measure all 3 phases with included 3 flexible current probes
• Complete “in-the-field"" setup through the front panel or Fluke Connect: No need to return to the workshop for download and setup or to take a computer to the electrical panel
• Fluke Connect® compatible: View data locally on the instrument, via Fluke Connect mobile app and desktop software or through your facilities’ WiFi infrastructure
• Energy Analyse Plus application software: Download and analyse every detail of energy consumption with our automated reporting

Fluke 1732/B Contents

Energy logger, basic version (excludes current probes), power supply, voltage test leads, alligator clips (4x), soft case, energy analyse plus software, line cords, colour coding set.

Fluke 1732/INTL Contents

Energy logger, International version (includes current probes), power supply, voltage test leads, alligator clips (4x), 12 in 1500 A flexible current probe (3x), soft case, energy analyse plus software, line cords, colour coding set.

Note

CRITICAL SAFETY ALERT - PLEASE READ! Fluke has determined that certain improper use of the test lead set, 3PHVL-1730 or 3PHVL-1735-5M 'Voltage Test Lead, 3-phase + N', included with the 173x Series, 174x Series Power Quality Loggers and 3540FC Power Monitor, may potentially expose users to hazardous conditions, posing the risk of serious personal injury or death.

FLUKE Energy Monitor and Logger, Lithium-Ion Battery, Includes Probes, Clips and Test Leads - FLUKE-1732/EUS

Make light work of logging data with this energy monitor and logger from FLUKE. It's an easy way of measuring and recording parameters including voltage, current and power, for later analysis. This gives an overview of your system's performance, which can help you identify areas of inefficiency and cut out electrical waste. As you can power the instrument directly from the circuit you're testing or from its batteries, there's no need to connect to the mains. Three flexible probes are included to you can get straight to work on your three-phase measurements.

Features & Benefits

• Bright LCD interface is easy to read and simple to interpret thanks to a clear, multi-colour display
• Lithium-ion battery is safe, long-lasting and rechargeable
• Supports Bluetooth, USB A, USB Mini and WiFi connections for broad compatibility
• Includes Energy Analyze Plus software that offers automated reporting to help you log and make sense of data

Applications

• Research and development laboratories
• Instrumentation and control
• Electrical manufacturing

What temperatures can I use this logger in?

This logger's operating temperature range of -10°C to +50°C makes it a smart choice for use in harsh environments.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

1732/EUS Energy Logger UK Euro Version

User Manual

SAFETY ALERT NOTIFICATION

Brochure - Power Qualityand Energy Tools
