Fluke 1732/INTL Energy Monitor & Logger for Current, Frequency, THD Current, THD Voltage, Voltage Measurement, Анализатор

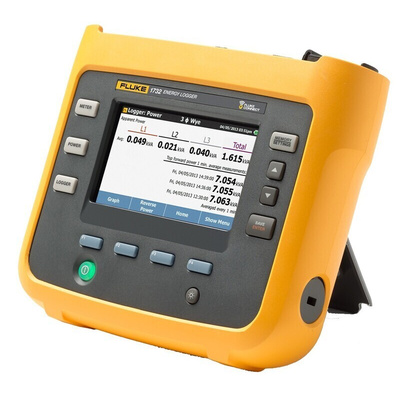

Fluke 1732 3 phase Electrical Energy Logger

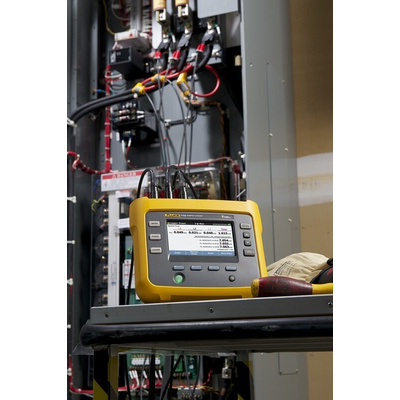

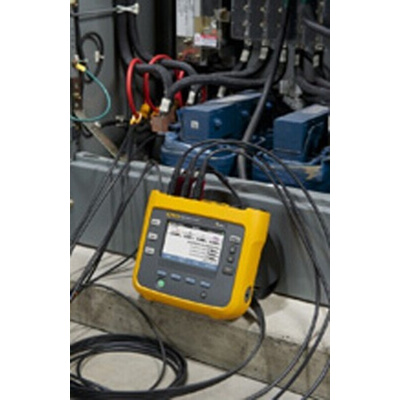

Energy logging is now within your reach—discover where you’re wasting energy, optimize your facility’s energy use and reduce your bill. The new Fluke 1732 Three-Phase Electrical Energy loggers introduce a new simplicity to discovering sources of electrical energy waste. Discover when and where energy in your facility is being consumed; from the service entrance to individual circuits.
Profiling energy usage across your facility helps you identify opportunities for energy savings, and provides you with the data you need to act on them. The new Energy Analyse software package allows you to compare multiple data points over time to build a complete picture of energy usage, which is the first step to reduce the cost of your energy bill.

Features and Benefits

• Key Measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
• Bright, colour touch screen, perform convenient in-the-field analysis and data checks with full graphical display
• Comprehensive Logging: More than 20 separate logging sessions can be stored on the instruments.
• Optimised User Interface: Quick, guided, graphical setup ensures that you are capturing the right data every time, and the intelligent verification function indicates that correct connections have been made, reducing user uncertainty
• Convenient Instrument Powering: Power instrument directly from the measured circuit
• Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
• Measure all 3 phases with included 3 flexible current probes
• Complete “in-the-field"" setup through the front panel or Fluke Connect: No need to return to the workshop for download and setup or to take a computer to the electrical panel
• Fluke Connect® compatible: View data locally on the instrument, via Fluke Connect mobile app and desktop software or through your facilities’ WiFi infrastructure
• Energy Analyse Plus application software: Download and analyse every detail of energy consumption with our automated reporting

Fluke 1732/B Contents

Energy logger, basic version (excludes current probes), power supply, voltage test leads, alligator clips (4x), soft case, energy analyse plus software, line cords, colour coding set and documentation on USB flash drive

Fluke 1732/INTL Contents

Energy logger, International version (includes current probes), power supply, voltage test leads, alligator clips (4x), 12 in 1500 A flexible current probe (3x), soft case, energy analyse plus software, line cords, colour coding set and documentation on USB flash drive

Note

CRITICAL SAFETY ALERT - PLEASE READ! Fluke has determined that certain improper use of the test lead set, 3PHVL-1730 or 3PHVL-1735-5M 'Voltage Test Lead, 3-phase + N', included with the 173x Series, 174x Series Power Quality Loggers and 3540FC Power Monitor, may potentially expose users to hazardous conditions, posing the risk of serious personal injury or death.

1732/INTL Energy Logger Int. Version

SAFETY ALERT NOTIFICATION
