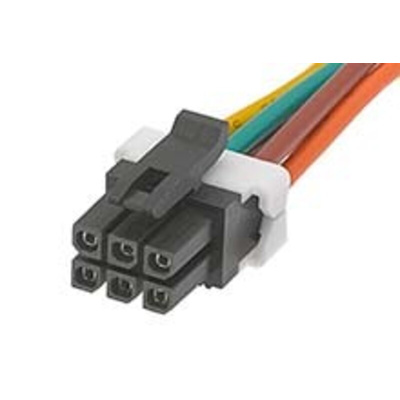

45132-0601, Molex 6 Way Female Micro-Fit TPA to 6 Way Female Micro-Fit TPA Wire to Board Cable, 150mm

Molex Micro-Fit TPA Cable Assemblies - 45132 Series

Micro-Fit 3.0 cable assemblies in a range of cable lengths terminated either end with a Micro-Fit 3.0 3 mm pitch female connector with TPA (Terminal Position Assurance). These Micro-Fit 3.0 connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The wires are multi-coloured to assist with correct connection. The Micro-Fit 3.0 receptacle connectors have fully isolated contacts and feature a TPA retainer which holds the contacts securely in place and reduces terminal back-outs. A positive lock on the connector ensures that the cable assembly is securely attached to the mating connector preventing accidental unmating due to vibration or mishandling. These Micro-Fit 3.0 wire-to-board cable assemblies are designed for use with series 43045 Micro-Fit 3.0 PCB headers and Micro-Fit 3.0 43020 series plug housings.

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Multi-coloured cables for easy identification and correct connection
• 5 A maximum current rating
• Fully isolated contacts
• Friction locks on connector housings for secure mating connection
• TPA (Terminal Position Assurance) to reduce terminal back-out
• Available in a range of cable lengths

Product Application Information

Micro-Fit 3.0 cable assemblies are ideal for use in Prototype design and global applications in range of industries. Industries include consumer and home appliances, data and computing (desktops, work stations, power supplies), telecommunications and networking (servers, routers and switches) and automotive and commercial vehicles

Molex Wire-to-Board Cable Assembly, 600V Voltage Rating, 150mm Length - Micro-Fit TPA Series - 45132-0601

Make an easy connection between a wire and a printed circuit board (PCB) with this wire-to-board cable assembly from Molex. It allows for quick and convenient links between circuits and is ready to use, with a female connector at either end. Multi-coloured wires help to prevent errors when you're connecting conductors. The unit's Micro-Fit connectors feature fully isolated contacts to help stop stray current from affecting the good function of the cable. This versatile component is a suitable choice for making permanent or temporary connections.

• Tin-plated contacts for optimal current transfer
• Fully isolated to reduce the risk of accidental electric shocks
• Operating temperature range of -40°C to +105°C for use in environments from cold storage units to hot manufacturing plants

Applications

• Data and computer networks
• Telecommunication systems
• Consumer and home appliances

How do I know if I've aligned the connector's contacts correctly?

These Micro-Fit connectors from Molex feature terminal position assurance (TPA), which holds the contacts in the correct alignment for mating. It also ensures they stay securely in place, even in vibrating conditions.
