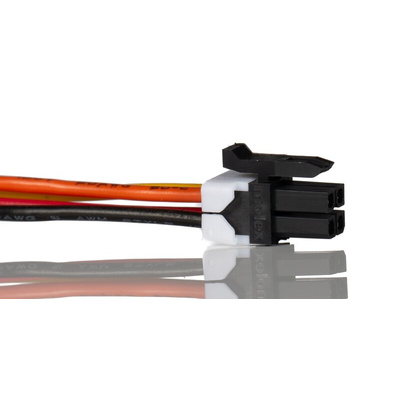

45132-0410, Molex 4 Way Female Micro-Fit TPA to 4 Way Female Micro-Fit TPA Wire to Board Cable, 1m

Molex Micro-Fit TPA Cable Assemblies - 45132 Series

Micro-Fit 3.0 cable assemblies in a range of cable lengths terminated either end with a Micro-Fit 3.0 3 mm pitch female connector with TPA (Terminal Position Assurance). These Micro-Fit 3.0 connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The wires are multi-coloured to assist with correct connection. The Micro-Fit 3.0 receptacle connectors have fully isolated contacts and feature a TPA retainer which holds the contacts securely in place and reduces terminal back-outs. A positive lock on the connector ensures that the cable assembly is securely attached to the mating connector preventing accidental unmating due to vibration or mishandling. These Micro-Fit 3.0 wire-to-board cable assemblies are designed for use with series 43045 Micro-Fit 3.0 PCB headers and Micro-Fit 3.0 43020 series plug housings.

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Multi-coloured cables for easy identification and correct connection
• 5 A maximum current rating
• Fully isolated contacts
• Friction locks on connector housings for secure mating connection
• TPA (Terminal Position Assurance) to reduce terminal back-out
• Available in a range of cable lengths

Product Application Information

Micro-Fit 3.0 cable assemblies are ideal for use in Prototype design and global applications in range of industries. Industries include consumer and home appliances, data and computing (desktops, work stations, power supplies), telecommunications and networking (servers, routers and switches) and automotive and commercial vehicles

Molex Wire to Board Cable, 300V Voltage Rating, 5A Maximum Current Per Contact - Micro-Fit TPA Series - 45132-0410

Use this wire-to-board cable from Molex to transmit power signals to components on your PCB. It's terminated on both ends with TPA connectors that give you a secure hold on mating parts to prevent accidental disconnection. The cable's phosphor-bronze contacts are highly conductive with low-contact resistance to give you a reliable connection. Tin-plating ensures corrosion resistance to ensure long-term performance, even in damp conditions.

Features & Benefits

• Cable length of 1m for easy access without excess clutter
• Colour-coded wires for quick and easy identification
• Voltage rating of 300V suitable for low-voltage settings
• Pitch of 3mm provides sufficient safe spacing between contacts to prevent short circuits

Applications

• Data servers
• Desktops and laptops
• Consumer electronics

How many circuits can I transmit power to with this cable?

This cable has a 4-core configuration, so it can send signals to 4 circuits, reducing the wiring needs of your setup.
