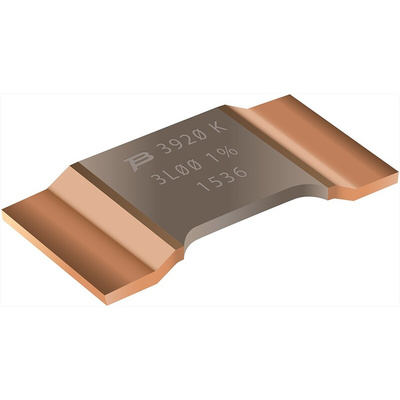

Bourns 200μΩ, 3920 Metal Strip SMD Resistor ±1% 12W - CSS2H-3920R-L200FE, Резистор

Bourns CSS2H-3920 Series Current Sense Resistors

Bourns CSS2H-3920 current sense resistors have a resistance range of 0.5 to 3Ω and have 2-6W power per resistor. These resistors detect and convert current to an easily measured voltage which is proportional to the current through the device. Their metal alloy current sensing element allows for low thermal EMF and low TCRs of 50 PPM/°C in the 20 °C to 60 °C temperature range.

Features

EB welded metal strip
Long term stability
Very high power
Low resistance, low TCR
Low thermal EMF

Applications

Current Sensing
Voltage Division
Battery Management Systems
Frequency Convertors
Power modules
Industrial

EB Welded Metal Strip
Very High Power
Excellent Long Term Stability
Low Resistance, low TCR
Low Thermal EMF
ROHS Compliant and Halogen Free
AEC-Q200 Qualified
Current Sensing
Voltage Division
Battery Management Systems
Power Modules
Frequency Converters
Industrial

Bulk metal chip resistors
Low thermal e.m.f.
Non-inductive
Marked with 3-digit resistance code
Mini reels are ideal for small batch production, development and R&D department
Suitable for automatic assembly on pick and place machinery

Bourns CSS2H-3920 Series Current Sense Resistor Datasheet
