800F-MN3G, Allen Bradley 800F Series Light Block, 24V ac/dc, Green Light, Световой блок

LED Modules

Superior brightness
Extremely visible LED
Leakage current resistant
100000 hours of continuous operation
Can be used on any 800F illuminated operator
Supplied complete with latch: plastic and metal options available

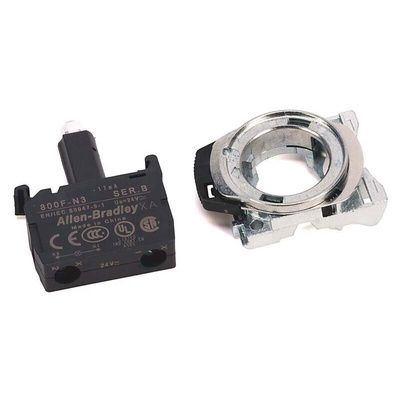

Allen Bradley Light Block and Holder, Green LED, 24V AC/DC Rating - 800F-MN3G

For an indication of the status of your equipment, use this light block and holder from Rockwell Automation's Allen Bradley range. It has a green LED module that's used to show the ON state of a machine. The module comes complete with a holder and screw terminals for quick and easy installation. As the latch is made of tough die-cast zinc alloy that's finished with chromate plating, you can count on it for long service in demanding conditions. A rating of 24V AC/DC makes this a good fit for low-voltage applications.

• Delivers 100,000 hours of continuous operation for long-term performance
• Industrial-grade thermoplastic housing is resistant to impacts and chemicals
• Low front of panel design means it fits easily into shallow enclosures
• IP66 (ingress protection) rating indicates it's protected against dust and powerful water jets

Standards and Certifications

• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

Can I use the holder with different light blocks?

Yes, it can accommodate different 800F light blocks from Rockwell Automation's Allen Bradley range.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
