800F-MN5G, Allen Bradley 800F Series Light Block, 120V ac, Green Light, Световой блок

LED Modules

Superior brightness
Extremely visible LED
Leakage current resistant
100000 hours of continuous operation
Can be used on any 800F illuminated operator
Supplied complete with latch: plastic and metal options available

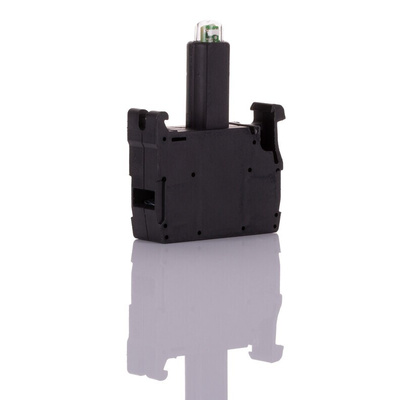

Allen Bradley Light Block, Latch Included, Screw Terminal - 800F-MN5G

When you need to make it clear to personnel when processes have been activated, go for this green light block from Rockwell Automation's Allen Bradley range. You can mount it to the rear of a push button switch alongside the contact block, where it acts as an indicator light, shining through the button head. The super-bright LED gives you 100,000 hours of continuous operation, so you can be sure of its longevity. This light block is suitable for use on any 800F illuminated operator (such as 511-7917). You'll find it commonly used in control panels and industrial machinery.

• Screw terminals help you make quick and secure connections
• Fits a standard 22mm cutout for easy installation
• Modular flexibility helps you build the system you need

Standards and Certifications

• CE
• UL
• CSA
• CCC
• IP66

What types of light block are available?

You can buy two kinds of light blocks: those with LEDs and those with incandescent bulbs. LEDs are designed to last the lifetime of the block, while incandescent bulbs can be replaced when they burn out.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
