800F-MN7G, Allen Bradley 800F Light Block & Holder - Green, 240 V ac, Световой блок

LED Modules

Superior brightness
Extremely visible LED
Leakage current resistant
100000 hours of continuous operation
Can be used on any 800F illuminated operator
Supplied complete with latch: plastic and metal options available

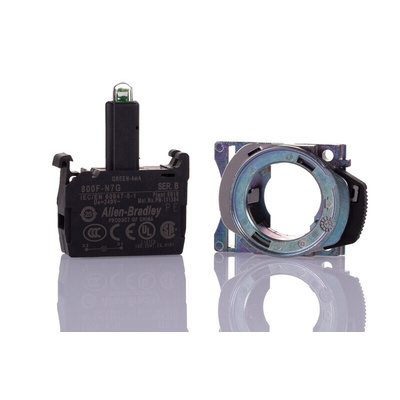

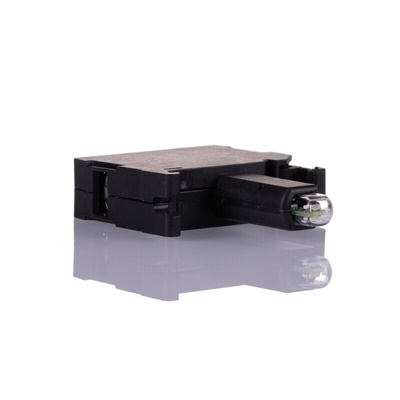

Allen Bradley Light Block and Holder, Green LED, Screw Terminal Type - 800F-MN7G

Choose this light block and holder from Rockwell Automation's Allen Bradley range to complete your illuminated push button installation. When you press an attached button head, the LED will light up the lens to indicate the activity of a connected machine. This means users can check on status at a glance, boosting workplace safety. The robust metal holder is designed to fit with operators from the 800F series, which you can attach and remove easily using the rotating collar.

• Voltage rating of 240V AC for compatibility with high-powered applications
• Supplied with metal holder and screw-type terminals for quick mounting and connection
• Provides 100,000 hours of continuous operation for long-lasting performance
• 6mA current rating for efficient energy consumption

Standards and Certifications

• CE Marked
• CSA Certified
• UL508
• CCC Compliant

Which push buttons are compatible with this device?

This light block and holder set is designed for use with Allen Bradley's 800F series push buttons. It's ideally suited to illuminated operator 800FP-LE3 (800-3454) due to the green LED which comes with this unit. A snap-down system makes it easy for one person to connect the block to the button head.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
