800F-MN7W, Allen Bradley 800F Series Light Block, 240V ac, White Light, Световой блок

LED Modules

Superior brightness
Extremely visible LED
Leakage current resistant
100000 hours of continuous operation
Can be used on any 800F illuminated operator
Supplied complete with latch: plastic and metal options available

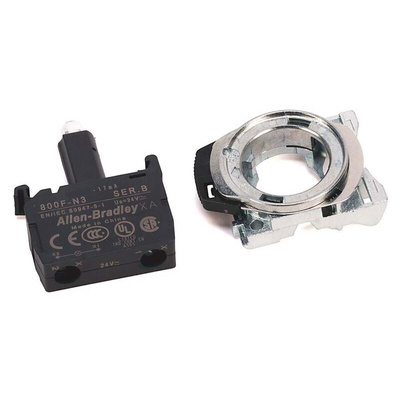

Allen Bradley Light Block and Holder, White LED, 240V AC Rating - 800F-MN7W

Looking for a way to indicate the status of a push button? Try this light block and holder from Rockwell Automation's Allen Bradley range. The set comes with a white LED, which is used to indicate that the attached equipment is active. It has a latch that's made of hardwearing die-cast zinc alloy with chromate plating, so it can withstand demanding environments with minimal maintenance. Installation is straightforward – all you need is a screwdriver. You'll find light blocks like this used on control panels for operating heavy equipment in production facilities.

• Reliable option rated for 100,000 hours of continuous operation
• Designed with a low front of panel to fit into smaller enclosures
• Industrial-grade thermoplastic housing resists chemicals and impacts so can be used in demanding conditions
• Operating temperature range of -25°C to +70°C for safe industrial use

Standards and Certifications

• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

Are other light blocks compatible with this holder?

Yes. Any light block from Rockwell Automation's Allen Bradley 800F Series is compatible with this holder.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability

Datasheet

800F Push Buttons Line Guide
