800F-MX01S, Allen Bradley 800F Series Contact Block, 24V, 1NC, Контактный блок

Contact Blocks

Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.

CE Marked in compliance to relevant European Directive

Note

In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

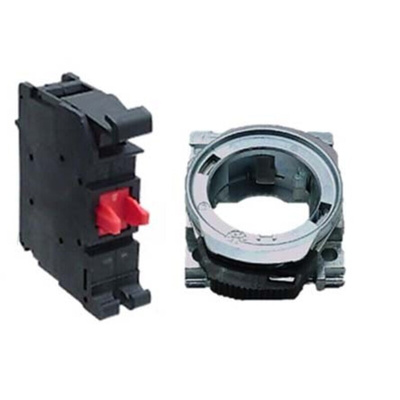

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308

Allen Bradley Contact Block and Holder, NC Contacts, Screw Termination - 800F-MX01S

Looking for a switching solution for your industrial push buttons? Choose this contact block from Rockwell Automation's Allen Bradley range. Its durable thermoplastic housing offers resistance to corrosion and mechanical impact, so you can use it in demanding industrial environments. This material also serves as an insulator to protect you against the risk of electric shocks. The unit comes with its own holder for quick and easy installation. You'll find this component used with human-machine interfaces (HMI) and on safety-equipment control panels.

• Integrated cartridge fuse for protection against short circuits
• 690V rated insulation voltage makes it suitable for heavy-duty applications
• Maximum tightening torque of 0.9Nm ensures a secure connection
• Wide operating temperature range of -25°C to +70°C for use in challenging conditions

Standards and Certifications

• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

How do I install this contact block?

This contact block is easy to install. Simply attach it via its holder to the equipment panel with a screwdriver and connect the power cables to its terminal points.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
