800F-MX10, Allen Bradley 800F Series Contact Block, 24V, 1NO, Контактный блок

Contact Blocks

Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.

CE Marked in compliance to relevant European Directive

Note

In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

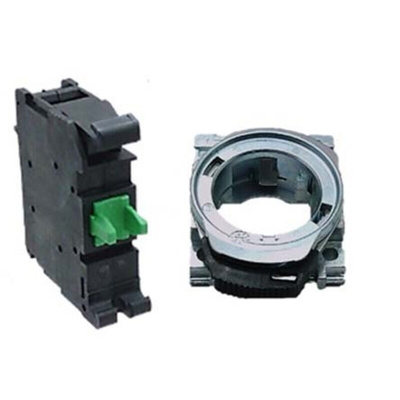

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308

Allen Bradley Contact Block and Holder, NO Contacts, Plastic Latch - 800F-MX10

For straightforward installation of a push button, use this contact block and holder from Rockwell Automation's Allen Bradley range. It has one normally open (NO) contact that allows current to flow when the button is pressed and returns to its OFF state when it's not. The block is housed in a thermoplastic case that's durable and resistant to impact and corrosion, for reliable use in harsh environments. As the device comes with its own holder to secure it firmly to the panel, setup is easy. You'll find it used in laboratories and workshops.

• IP2X (ingress protection) rating indicates it's touch-proof and can withstand dust and particles larger than 12mm in size
• Wide operating temperature range of -25°C to +70°C for use in demanding conditions
• Integrated 10A cartridge fuse for short-circuit protection
• 690V rated insulation voltage ensures it's suitable for heavy-duty electrical setups

Standards and Certifications

• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

What wire sizes can I use with this contact block?

The block is a versatile choice that can accommodate wire sizes from 18 to 12AWG.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
