800FP-LMM43, Allen Bradley 800F Series Green Illuminated Momentary Push Button Head, 22mm Cutout, IP65

Mushroom Operators

Non-illuminated and illuminated momentary action metal mushroom operators in various colours
40mm head diameter
Operators are IP65 rated

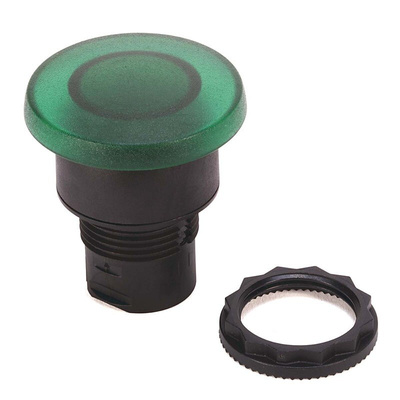

Allen Bradley Green Round Push Button, 40mm Button Diameter, 22mm Cutout - 800FP-LMM43

This push button from Rockwell Automation's Allen Bradley range is a simple switch mechanism for controlling a machine. It has a flat, wide head contained securely in a rigid plastic base. The unit comes with a mounting ring to help you screw it in place onto a latch or contact block. It responds momentarily to activation, meaning you can quickly change the operation of moving machines, such as industrial conveyors, articulated robots or programmable logic controllers.

• IP65 (ingress protection) rating indicates the unit is dust-tight and resistant to low-pressure water jets
• Green colour for immediate identification in a colour-coded setup
• Illuminated button for visibility in dark work areas
• Round, raised button shape for easy activation at all angles
• Modular design allows for easy one-person mounting and removal

Standards and certifications

• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

How can I tell if this push button is operational?

You can tell if this push button is operational from the illuminated button surface. If it's illuminated then the switch is on and ready to use.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
