800FP-LMM45, Allen Bradley 800F Series Yellow Momentary Push Button Head, 22mm Cutout, IP65

Mushroom Operators

Non-illuminated and illuminated momentary action metal mushroom operators in various colours
40mm head diameter
Operators are IP65 rated

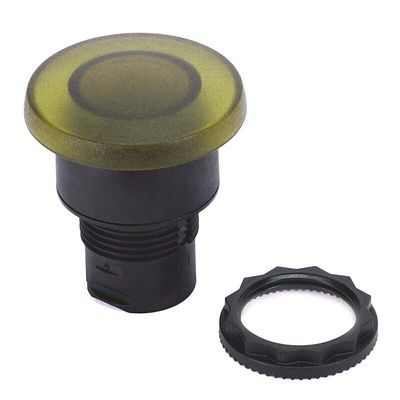

Allen Bradley Push Button Head, Yellow Illumination, IP65 Rating - 800FP-LMM45

When you need a robust component to alert personnel to hazards, choose this push button head from Rockwell Automation's Allen Bradley range. It's made of industrial-grade thermoplastic for durability and resistance to chemicals. The mushroom-shaped operating surface illuminates in yellow to indicate the status of the connected machine, so the unit is easily recognisable even in settings with reduced visibility. As this device comes with an IP65 rating, you can rest assured that it's protected from dust and jets of water.

• Industry-standard 22mm cutout diameter for ease of installation
• Self-monitoring contact block ensures correct connection with latch
• Momentary actuation improves safety through quick cut-off when pressure is withdrawn from the button
• Large surface diameter of 40mm means the unit stands out even on a crowded factory floor

Standards and Certifications

• CE Marked
• CSA Certified
• CCC Compliant
• UL508

How do I install this push button head?

This component is designed for straightforward, one-person installation and removal using a latch, mounting ring and contact block. It has a simple snap-down mechanism and the latch collar rotates so that you can quickly uninstall your button if necessary.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
