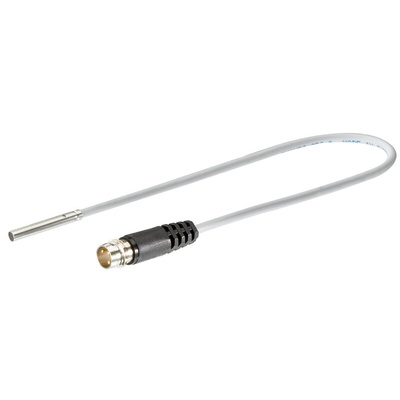

871C-DM1NP3-AP3, Allen Bradley Inductive Barrel-Style Proximity Sensor, 0.8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

871C Miniature Inductive Sensors

Allen Bradley 871C series miniature inductive proximity sensors are self-contained, solid-state devices designed to sense the presence of ferrous and non-ferrous metal objects without touching them. These small-barrel sensors are designed for space-critical applications where standard-size sensors simply will not fit. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Three wire operation
3 conductor, 3-pin pico or 3 pin 6 in lead
3 mm, 4 mm, and 5 mm barrel diameters
10 V dc to 30 V dc
Normally open contacts
False pulse, transient noise, reverse polarity and short circuit protections

Allen Bradley Proximity Sensor, 3mm Barrel Diameter, 5kHz Switching Frequency - 871C-DM1NP3-AP3

Looking for a sensor that includes IO-Link functionality? Choose this smooth 3mm proximity sensor from Rockwell Automation's Allen Bradley range. Its precise 0.8mm detection distance is ideal when space is limited and a standard-sized sensor won't fit. Thanks to a high switching frequency of 5kHz, the unit can quickly detect the presence of ferrous and non-ferrous metals. This device features false pulse, reverse polarity and short-circuit protection to prevent damage and ensure it's a reliable option for prolonged use.

• IP67-rated, indicating it's dust-tight and waterproof, so suitable for use in contaminated conditions
• Wide operating temperature range between -25°C and +70°C to suit harsh environments
• Stainless steel housing is corrosion-resistant to prevent rust and signal degradation, even in damp surroundings

Standards and Certifications

• NEMA 1, 2, 3, 4, 12 and 13
• IEC 529
• CE Marked
• cULus

What are the benefits of hooking this sensor up with an IO-Link master?

Connecting your device to an IO-Link master (817-1598) gives you real-time diagnostics and sensor health updates. You'll also be able to save configuration profiles that you can quickly select at start-up to increase uptime and productivity.

Datasheet

871C 3-wire DC mini tubular Sensors Specifications Datasheet

User Manual - 871C Miniature Inductive Sensors With IO-Link Interface
