871C-DM1NP4-AP3, Allen Bradley Inductive Barrel-Style Proximity Sensor, 0.8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

871C Miniature Inductive Sensors

Allen Bradley 871C series miniature inductive proximity sensors are self-contained, solid-state devices designed to sense the presence of ferrous and non-ferrous metal objects without touching them. These small-barrel sensors are designed for space-critical applications where standard-size sensors simply will not fit. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Three wire operation
3 conductor, 3-pin pico or 3 pin 6 in lead
3 mm, 4 mm, and 5 mm barrel diameters
10 V dc to 30 V dc
Normally open contacts
False pulse, transient noise, reverse polarity and short circuit protections

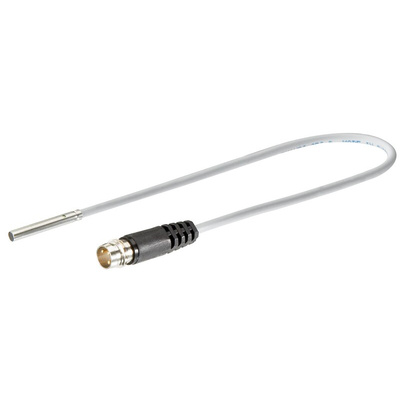

Allen Bradley Proximity Sensor, IO-Link Communication Protocol, 5kHz Switching Frequency - 871C-DM1NP4-AP3

Reliably identify ferrous and non-ferrous metals with this smooth-barrel proximity sensor from Rockwell Automation's Allen Bradley series. It comes with an IO-Link communication protocol for easy integration into the Connected Enterprise. Install it with an IO-Link master (817-1598) to process data and receive real-time diagnostics. Thanks to its small dimensions of 4 (D) x 25mm (L), this unit fits into tight or hard-to-reach spaces. For longevity, it has built-in reverse polarity, false pulse and short-circuit protection to prevent damage caused by electrical surges.

• Standard 3-pin M8 connector for fast installation in your existing setup
• 5kHz switching frequency lets you quickly detect materials and take measurements
• Broad operating temperature range between -25°C and +70°C for use in harsh environments

Standards and Certifications

• CE Marked
• NEMA 1, 2, 3, 4, 12 and 13
• cULus
• IEC 529

Where can I use this sensor?

You can use this sensor in demanding indoor and outdoor setups thanks to its corrosion-resistant stainless steel housing. It's IP67-rated, meaning it's dustproof and waterproof. This robust housing also comes with several NEMA ratings, indicating the product is safe to use in industrial environments where oils and chemicals are present.

Datasheet

871C 3-wire DC mini tubular Sensors Specifications Datasheet

User Manual - 871C Miniature Inductive Sensors With IO-Link Interface
