871C-DM1NP4-E2, Allen Bradley Inductive Barrel-Style Proximity Sensor, 0.8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

871C Miniature Inductive Sensors

Allen Bradley 871C series miniature inductive proximity sensors are self-contained, solid-state devices designed to sense the presence of ferrous and non-ferrous metal objects without touching them. These small-barrel sensors are designed for space-critical applications where standard-size sensors simply will not fit. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Three wire operation
3 conductor, 3-pin pico or 3 pin 6 in lead
3 mm, 4 mm, and 5 mm barrel diameters
10 V dc to 30 V dc
Normally open contacts
False pulse, transient noise, reverse polarity and short circuit protections

Allen Bradley Proximity Sensor, 25mm Housing Length, 2m Cable - 871C-DM1NP4-E2

Are you looking for a smart component you can integrate with the Connected Enterprise? Choose this proximity sensor from Rockwell Automation's Allen Bradley series. It features a built-in communication protocol enabling you to easily incorporate it into your existing system with an IO-Link master (817-1598). Once installed, you can create different device configuration profiles to minimise set-up time and improve productivity. The tough, corrosion-resistant stainless steel housing protects against impact damage and rust for prolonged use in demanding industrial conditions.

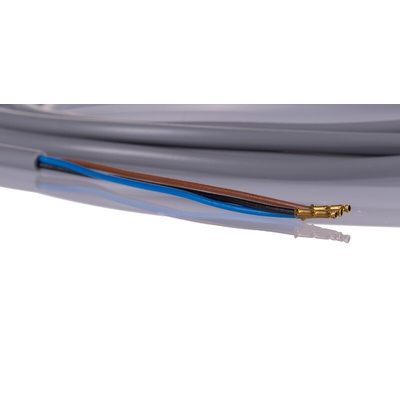

• Flexible 2m PVC cable provides a longer reach from control equipment
• Shielded design prevents signal interference by reducing electrical noise
• Wide operating temperature range between -25°C and +70°C to suit challenging environments
• Fast 5kHz switching frequency to sense metals and collect data quickly
• Small dimensions of 4 (D) x 25mm (L) suit applications where space is limited

Standards and Certifications

• IEC 529
• CE Marked
• cULus
• NEMA 1, 2, 3, 4, 12 and 13

What's the Connected Enterprise?

The Connected Enterprise is a management system that connects smart devices like this sensor to networks and processes. Doing so improves data collection and analysis so that you can make better operational decisions.

Datasheet

871C 3-wire DC mini tubular Sensors Specifications Datasheet

User Manual - 871C Miniature Inductive Sensors With IO-Link Interface
