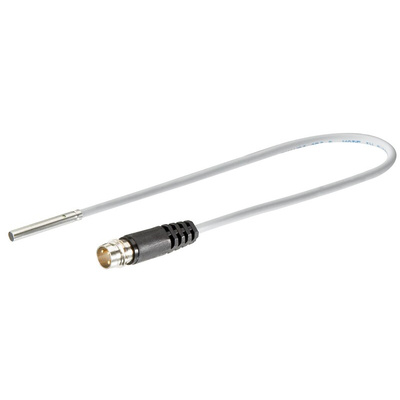

871C-M1NP4-AP3, Allen Bradley 871C Series Inductive Barrel-Style Proximity Sensor, M4 x 0.5, 1 mm Detection, PNP Output, 10 → 30, Индуктивный датчик приближения

871C Miniature Inductive Sensors

Allen Bradley 871C series miniature inductive proximity sensors are self-contained, solid-state devices designed to sense the presence of ferrous and non-ferrous metal objects without touching them. These small-barrel sensors are designed for space-critical applications where standard-size sensors simply will not fit. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Three wire operation
3 conductor, 3-pin pico or 3 pin 6 in lead
3 mm, 4 mm, and 5 mm barrel diameters
10 V dc to 30 V dc
Normally open contacts
False pulse, transient noise, reverse polarity and short circuit protections

Allen Bradley Inductive Proximity Sensor, 10 to 30V DC Supply Voltage, 1mm Detection Range - 871C-M1NP4-AP3

Install this inductive proximity sensor from Rockwell Automation's Allen Bradley range to detect metal objects in setups where space is tight. Its self-contained design and flush mounting make it a compact choice. A barrel diameter of 4mm and body length of 22mm with a 1mm sensing range mean it needs minimal room to operate. The 3-pin quick-connect terminal and flexible lead make for quick and simple connections, while automatic configuration reduces set-up time. Thanks to IO-Link technology, this unit can be networked to your automated system to minimise maintenance downtime.

• Stainless-steel housing for durability and use in hygienic areas
• Ingress protection rating of IP67 means it's dust-tight and water-resistant for use in harsh conditions
• Shielded to increase the reliability of metal object detection
• Short-circuit protection to reduce sensor damage from electrical faults

Standards and Certifications

• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories)
• RoHS (Restriction of Hazardous Substances)

What supply voltage does this proximity sensor work with?

This proximity sensor works with supply voltages between 10 and 30V DC, making it a versatile choice for industrial use.

Datasheet

871C 3-wire DC mini tubular Sensors Specifications Datasheet

User Manual - 871C-M1NP4-AP3
