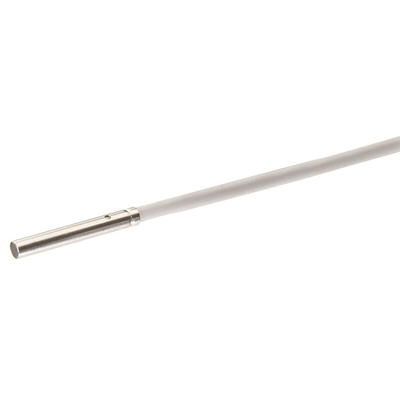

871C-MM2NP4-E2, Allen Bradley Inductive Barrel-Style Proximity Sensor, 1.5 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

871C Miniature Inductive Sensors

Allen Bradley 871C series miniature inductive proximity sensors are self-contained, solid-state devices designed to sense the presence of ferrous and non-ferrous metal objects without touching them. These small-barrel sensors are designed for space-critical applications where standard-size sensors simply will not fit. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Three wire operation
3 conductor, 3-pin pico or 3 pin 6 in lead
3 mm, 4 mm, and 5 mm barrel diameters
10 V dc to 30 V dc
Normally open contacts
False pulse, transient noise, reverse polarity and short circuit protections

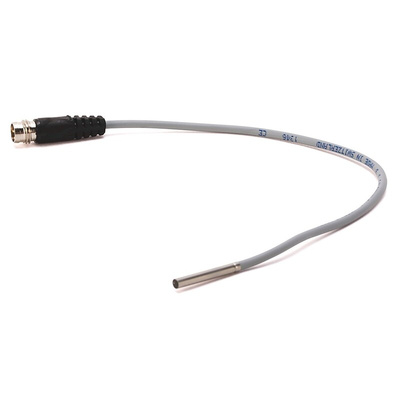

Allen Bradley Inductive Proximity Sensor, 1.5mm Detection, 200mA Switching Current - 871C-MM2NP4-E2

Use this high-performance inductive proximity sensor from Rockwell Automation's Allen Bradley range to accurately sense objects without touching them. It's a solid-state device that uses an electromagnetic field to detect the presence of ferrous and non-ferrous metal items. The miniature sensor has a small barrel, so you can use it in space-critical applications where standard-size products won't fit. IO-Link capability offers advanced features and diagnostics such as automatic device configurations and reduced inventory and operating costs. Use this versatile item in dairy valve-control processes and for position detection on production lines.

• 3-wire operation enables higher ohmic loads for use on measuring instruments with a higher input impedance
• Stainless steel housing resists corrosion for an extended lifespan
• IO-Link for the easy integration of sensors and actuators into a network
• Quick disconnect cable and connector for simple installation

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)
• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories in Canada and the US)

Can I use this inductive proximity sensor in tough industrial environments?

Yes. This robust and durable inductive proximity sensor carries an IP67 (ingress protection) rating, meaning it's completely protected against dust and moisture. You can also use it safely in temperatures from -25°C to +70°C.

Datasheet

871C 3-wire DC mini tubular Sensors Specifications Datasheet

Selection Guide - Essential Components

User Manual - 871C Miniature Inductive Sensors with IO-Link Interface
