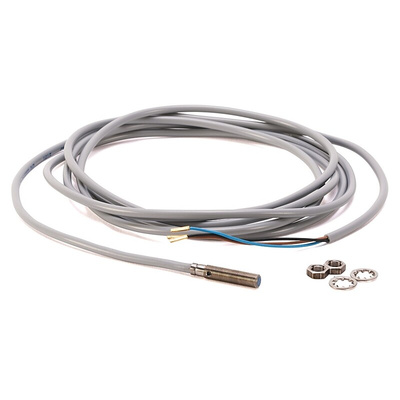

871C-M2NP5-P3, Allen Bradley Inductive Barrel-Style Proximity Sensor, M5 x 0.5, 1.5 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

871C Miniature Inductive Sensors

Allen Bradley 871C series miniature inductive proximity sensors are self-contained, solid-state devices designed to sense the presence of ferrous and non-ferrous metal objects without touching them. These small-barrel sensors are designed for space-critical applications where standard-size sensors simply will not fit. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Three wire operation
3 conductor, 3-pin pico or 3 pin 6 in lead
3 mm, 4 mm, and 5 mm barrel diameters
10 V dc to 30 V dc
Normally open contacts
False pulse, transient noise, reverse polarity and short circuit protections

Allen Bradley Inductive Proximity Sensor, 1.5mm Detection Range, 200mA Switching Current - 871C-M2NP5-P3

This high-performance Allen Bradley inductive proximity sensor from Rockwell Automation is a reliable and accurate way of sensing and detecting objects in industrial applications. The miniature device's small barrel makes it ideal for use in limited spaces. It's a self-contained unit that doesn't need any additional parts to function. Innovative IO-Link integration features real-time diagnostics to track sensor stability and allows you to set up device-specific parameters and automatic configurations. Use this product with your space-critical automation processes.

• Rugged and reliable M5 connector for secure connections that remain in place during jolts and vibrations
• IP67 (ingress protection) rating indicates complete protection from dust, water sprays and submersion up to 1m for use in challenging industrial environments
• Voltage range from 10V to 30V for compatibility with demanding industrial equipment

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)
• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories for Canada and the US)

How do I mount this inductive proximity sensor?

This inductive proximity sensor is a flush mounting type. This is necessary to safeguard the component when it's linked to heavy-duty applications as it helps protect the face of the sensor

Datasheet

871C 3-wire DC mini tubular Sensors Specifications Datasheet

Selection Guide - Essential Components

User Manual - 871C Miniature Inductive Sensors with IO-Link Interface
