871TM-M6NP12-A2, Allen Bradley Inductive Barrel-Style Proximity Sensor, M12 x 1, 6 mm Detection, PNP Output, 10 → 30 V dc, IP68,, Индуктивный датчик приближения

871TM Long Range Inductive Proximity Sensors

Allen Bradley 871TM series tubular stainless steel inductive sensors are ideal for harsh or extremely demanding environments. These sensors resist impact, abrasion and corrosion, to keep things moving where ordinary sensors grind to a halt. The 871TM series features full mechanical seals at all barrel openings and full epoxy encapsulation for optimal performance in the toughest environments. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Contacts are N.O. or N.C., NPN or PNP output
PVC or ToughLink™ cable or micro quick disconnect
1200 psi washdown
Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection

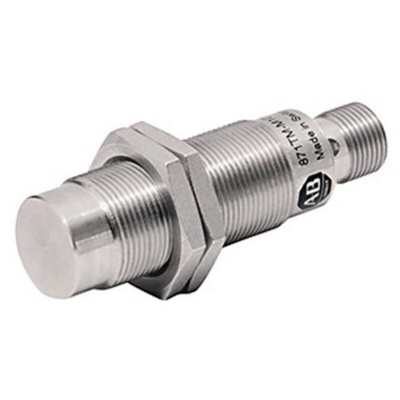

Allen Bradley Inductive Proximity Sensor, 6mm Detection Range, 200mA Switching Current - 871TM-M6NP12-A2

This inductive proximity sensor from Rockwell Automation's Allen Bradley range provides a reliable and accurate sensing solution for the detection of ferrous and non-ferrous metals. It's made of a durable stainless steel material and features full epoxy encapsulation, so it's resistant to impact, abrasion and corrosion for long-lasting performance in harsh environments. Incorporated IO-Link functionality allows easy integration with IO-Link Master or Ethernet networks for seamless data delivery from the sensor directly to a control system.

• Electromagnetic protection of up to 400 gauss to prevent false triggering in welding applications
• Polyurethane cable sheath for resistance to wear and heat
• Wide operating temperature range of -25°C to +70°C for use in harsh environments

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)
• CE (Conformitè Europëenne)

Can this inductive proximity sensor be cleaned easily?

Yes, thanks to its IP69K (ingress protection) rating, this component is fully protected against dust and can withstand high-temperature, high-pressure washdowns at up to 1200psi (pounds per square inch). This makes it a good choice for use in hygienic areas where frequent washdowns are needed.
