871TM-N20NP18-A2, Allen Bradley 871TM Series Inductive Barrel-Style Proximity Sensor, M18 x 1, 20 mm Detection, PNP Output, 10 →, Индуктивный датчик приближения

871TM Long Range Inductive Proximity Sensors

Allen Bradley 871TM series tubular stainless steel inductive sensors are ideal for harsh or extremely demanding environments. These sensors resist impact, abrasion and corrosion, to keep things moving where ordinary sensors grind to a halt. The 871TM series features full mechanical seals at all barrel openings and full epoxy encapsulation for optimal performance in the toughest environments. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Contacts are N.O. or N.C., NPN or PNP output
PVC or ToughLink™ cable or micro quick disconnect
1200 psi washdown
Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection

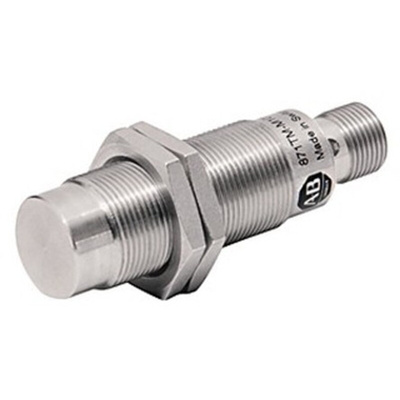

Allen Bradley Proximity Sensor, IO-Link Communication Interface, Unshielded - 871TM-N20NP18-A2

Need a proximity sensor for long-range object detection in a demanding industrial workplace? Try this barrel-style inductive proximity sensor from Rockwell Automation's Allen Bradley range. Offering up to three times the sensing range of standard models, it helps you detect objects over greater distances. AS it's sensitive to ferrous and non-ferrous metals, including copper and brass, it's a versatile option. The robust stainless steel construction resists impact, abrasion and corrosion, so you can trust the unit will last. This inductive proximity sensor integrates seamlessly with IO-Link interfaces, a worldwide standard communication protocol that gives you easy control of your sensors and actuators.

Features & Benefits

• Epoxy resin encapsulation protects the electromagnet inside
• IP69K and 1200psi wash-down rated, so is dustproof and suitable for hygiene-critical settings where high-temperature power washing occurs
• Short-circuit overload protection means you and your equipment are protected against excess current

Standards and Certifications

• UL
• CSA
• cULus
• CE marked
• UKCA marked

What's the operating temperature range of this sensor?

The sensor has a broad operating temperature range of -25°C to +70°C, so you can safely install it in extreme climates.
