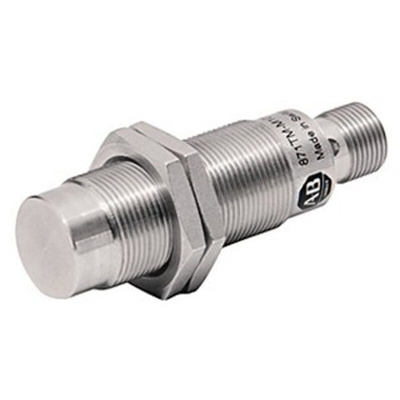

871TM-M10NP18-D4, Allen Bradley 871TM Series Inductive Barrel-Style Proximity Sensor, M18 x 1, 10 mm Detection, PNP Output, 10 →, Индуктивный датчик приближения

871TM Long Range Inductive Proximity Sensors

Allen Bradley 871TM series tubular stainless steel inductive sensors are ideal for harsh or extremely demanding environments. These sensors resist impact, abrasion and corrosion, to keep things moving where ordinary sensors grind to a halt. The 871TM series features full mechanical seals at all barrel openings and full epoxy encapsulation for optimal performance in the toughest environments. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Contacts are N.O. or N.C., NPN or PNP output
PVC or ToughLink™ cable or micro quick disconnect
1200 psi washdown
Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection

Allen Bradley Inductive Proximity Sensor, 10 to 30V DC Supply Voltage, 10mm Detection Range - 871TM-M10NP18-D4

When you need a proximity sensor that works in tough conditions, turn to this heavy-duty device from Rockwell Automation's Allen Bradley range. It's made with strong, corrosion-resistant stainless steel and has a wide operating temperature between -25°C and +70°C for use in demanding environments. The high ingress protection rating of IP69K means it's sealed against dust and high-temperature jets of water. As it's inductive, it can detect metals such as aluminium, copper and brass. This unit's electromagnetic shielding improves detection reliability by preventing false and unpredictable sensor triggering.

• Works with voltages between 10 and 30V DC for flexibility
• IO-Link enabled, ready for connecting to an industrial network
• Universal 4-Pin M12 circular connector to work with heavy-duty industrial cables and sockets
• Compact length of 65.1mm, for installation in tight spaces

Standards and Certifications

• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories)
• RoHS (Restriction of Hazardous Substances)

What's the detection range of this proximity sensor?

This proximity sensor has a range of 10mm for reliable and safe use, even with sensitive items.

Datasheet

User Manual - 871TM-M10NP18-D4
