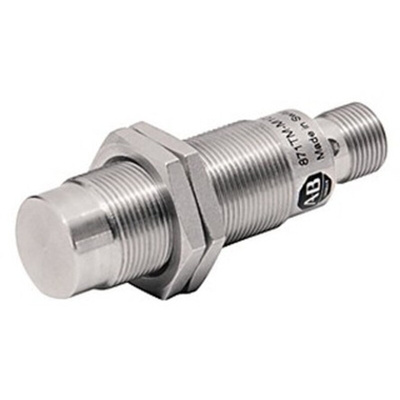

871TM-M10NP18-A2, Allen Bradley Inductive Barrel-Style Proximity Sensor, M18 x 1, 10 mm Detection, PNP Output, 10 → 30 V dc, IP68,, Индуктивный датчик приближения

871TM Long Range Inductive Proximity Sensors

Allen Bradley 871TM series tubular stainless steel inductive sensors are ideal for harsh or extremely demanding environments. These sensors resist impact, abrasion and corrosion, to keep things moving where ordinary sensors grind to a halt. The 871TM series features full mechanical seals at all barrel openings and full epoxy encapsulation for optimal performance in the toughest environments. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Contacts are N.O. or N.C., NPN or PNP output
PVC or ToughLink™ cable or micro quick disconnect
1200 psi washdown
Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection

Allen Bradley Proximity Sensor, 200mA Switching Current, IO-Link Interface - 871TM-M10NP18-A2

This inductive proximity sensor from Rockwell Automation's Allen Bradley range detects the presence of a ferrous metal object without making physical contact with it. Its non-contact operation increases the longevity of the sensor and minimises the risk of damage to the components it's detecting. An IO-link interface lets you conveniently send data to your control centre via your Ethernet, which helps to reduce inventory and improve productivity. With a robust stainless steel body, you can rely on this sensor to resist corrosion and withstand the demands of harsh industrial operating environments.

• Weld field immune, so helps to prevent false triggering during welding processes
• Withstands pressures up to 1200psi, so is suitable for use in hygienic environments where washdowns happen regularly
• Shielded for safety to minimise the risk of shocks
• Includes short-circuit protection to reduce the risk of damage caused by electrical faults

Standards and Certifications

• RoHS
• CE
• cULus

Applications

• Robotics systems
• Food and beverage industry
• Pharmaceutical production
• Packaging facilities

What's the detection range of this sensor?

This proximity sensor has a detection range of 10mm for use with small-scale components.

Datasheet

User Manual - 871Tm Inductive Proximity Sensors

Catalogue - Essential Components
