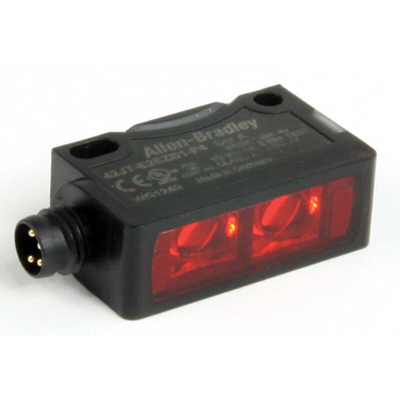

42JT-E2EZB1-P4, Allen Bradley Through Beam Photoelectric Sensor, Block Sensor, 0 → 13000 mm Detection Range IO-LINK, Фотоэлектрический датчик

Bulletin 42JT VisiSight Miniature Photoelectric Sensors

Allen Bradley 42JT VisiSight photoelectric sensors offer a small rectangular package with visible light beam for ease of alignment and industry standard mounting hole spacing. Each model offers PNP or NPN and light operate or dark operate outputs. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Class 1 ""Eye Safe"" red laser beam
Auto PNP/NPN output
Teach push button for sensitivity and LO/DO selection
IP69K and ECOLAB rated enclosure
Visible red LED light source for ease of alignment
Clear object detection
Colour and contrast detection
Mounting hole spacing of 25.4 mm

Allen Bradley Miniature Photoelectric Sensor, IO-Link, 0 to 13m Detection Range - 42JT-E2EZB1-P4

Need a reliable through-beam sensor that's suitable for use in tough conditions? Install this photoelectric sensor from Rockwell Automation's Allen Bradley range. It has a high ingress protection rating of IP69K, so it's dust-tight and resistant to powerful, high-temperature jets of water. In combination with a wide operating temperature of -20°C to +60°C, this means the sensor works dependably in harsh environments. To get you set up swiftly, the transmitter has a visible red light for easy alignment, while a 4-pin plug connects it quickly and securely to your industrial circuit.

• IO-Link communication to improve communication with industrial networks
• Quick 500μs (microseconds) response time for use on busy production lines
• Object detection range between 0 and 13m for application flexibility

Standards and Certifications

• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories)
• RoHS (Restriction of Hazardous Substances)

Is this photoelectric sensor suitable for use in food processing and handling?

Yes, this photoelectric sensor is suitable for the food industry and other hygienic applications. The housing can be cleaned with chemicals and disinfectants without degrading the sensor housing.

Datasheet

42JS & 42JT Series Datasheet

User Manual - VisiSight Photoelectric Sensors with IO-Link Interface
