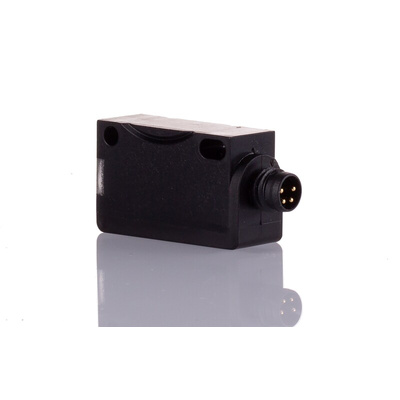

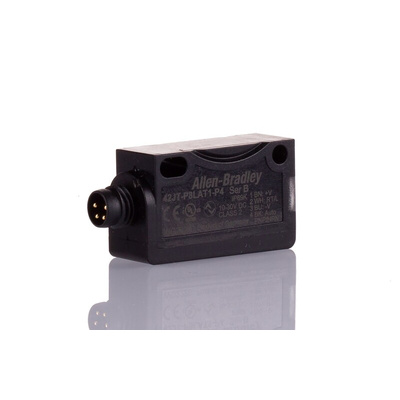

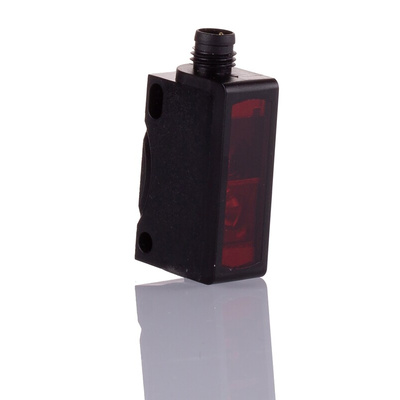

42JT-P8LAT1-P4, Allen Bradley Retroreflective Photoelectric Sensor, Block Sensor, 50 mm → 13 m Detection Range IO-LINK, Фотоэлектрический датчик

Bulletin 42JT VisiSight Miniature Photoelectric Sensors

Allen Bradley 42JT VisiSight photoelectric sensors offer a small rectangular package with visible light beam for ease of alignment and industry standard mounting hole spacing. Each model offers PNP or NPN and light operate or dark operate outputs. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Class 1 ""Eye Safe"" red laser beam
Auto PNP/NPN output
Teach push button for sensitivity and LO/DO selection
IP69K and ECOLAB rated enclosure
Visible red LED light source for ease of alignment
Clear object detection
Colour and contrast detection
Mounting hole spacing of 25.4 mm

Allen Bradley Photoelectric Sensor For Use With 92-118 Reflectors, IP69K Rating - 42JT-P8LAT1-P4

Looking for a single-unit long-range object detection solution for use in your industrial workplace? Try this retroreflective photoelectric sensor from Rockwell Automation's Allen Bradley range. It has and eye-safe Class I laser beam and a sensing range of 0.05 to 13m (0.16 and 42.7ft) when you use it with a compatible reflector. Thanks to the unit's polarised retroreflective mode, it reliably ignores light on a different wavelength than the beam emitted by the sensor. This means you can count on your sensor-reflector setup to accurately detect even shiny objects that can otherwise pose problems for detection systems.

Features & Benefits

• IO-Link compatible for easy control and maintenance of your detection system
• Response time of 0.25ms, so you can count on fast sensing for real-time diagnostics
• Alignment indication helps you position sensors and reflectors accurately for sensing at a distance

Standards and Certifications

• IP69K
• ECOLABS
• cULus
• CE

What's the spot size of this sensor?

This sensor spots items 14mm in size at a distance of 13m, so you can trust it's suitable for detecting small items.

Datasheet

42JS & 42JT Series Datasheet

Instruction Sheet - 42JT-P8LAT1-P4

User Manual - 42JT

Catalogue - Essential Components
