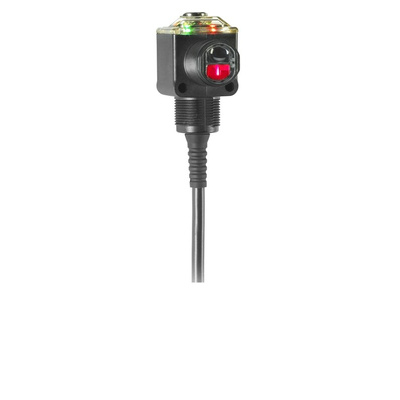

42EF-D2MPAK-Y4, Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 500 mm Detection Range IO-LINK, Фотоэлектрический датчик

1348366
Номер производителя: 42EF-D2MPAK-Y4Производитель: Allen Bradley
Цена за шт.
21945.30 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Bulletin 42EF RightSight Miniature Photoelectric Sensors

Allen Bradley 42EF RightSight series photoelectric sensors are designed for light to medium level industrial use. The 42EF sensors take many of the features of larger solutions and put them in a smaller, more adaptable package to deliver excellent detection capabilities where size and shape matter. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
1200 psi washdown ratings
Available in 12 V dc to.24 V dc and universal AC-DC supply versions
360° visible indicators
Universal 18 mm mounting at base and nose
Short circuit protection

Allen Bradley Photoelectric Sensor, LED Light Source, 4-Pin Electrical Connector - 42EF-D2MPAK-Y4

Detect the distance to an object with this photoelectric sensor from Rockwell Automation's Allen Bradley range. As it's a diffuse type device, its receiver and transmitter are contained in one housing, so it's quick and easy to mount. Embedded IO-Link communication protocol makes it simple to deliver data directly to your control network and keep your system productive with minimal downtime. Two bright LEDs offer clear status indication during installation, operation and troubleshooting. Thanks to linear potentiometer adjustment, any change in the potentiometer is directly proportional to the unit's sensing range, which simplifies setup and commissioning. This unit is a popular choice for use on automated assembly lines.

Features & Benefits

• Red light beams are clearly visible to assist you with easy alignment
• IP69K-rated housing is dust-tight and protected against high-pressure sprays of hot water
• Standard 18mm threaded base and nose for ease of mounting
• High-frequency ballast immunity, which helps to ensure reliable operation in demanding environments

Standards and Certifications

• CE
• CSA
• NEMA
• RoHS
• IEC
• UL

What's the detection range of this sensor?

This sensor has a detection range of 500mm, so suits medium-sized applications.

Техническая спецификация
pdfDatasheet
pdfInstruction Sheet - 42EF
pdfUser Manual - 42EF RightSight™ Photoelectric Sensors With IO-Link Interface
pdfCatalogue - Essential Components
Вид датчика:
Block
Время отклика:
1 мс
Встречающиеся стандарты:
CE, CSA, IEC 947-5-2, NEMA 3R, NEMA 4X, NEMA 6P, UL
Диапазон обнаружения:
500 мм
Интерфейс:
IO-Link
Источник света:
Светодиодная
Максимальное напряжение постоянного тока:
30В
Максимальный ток:
100 мА
Материал корпуса:
Полимер
Протокол связи:
IO-LINK
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Режим переключения:
Light / Dark switching
Серия:
42EF
Степень защиты IP:
IP67
Тип выхода:
PNP
Тип клеммы:
4 Pin Pico Quick Disconnect
Тип монтажа:
Cable Mount, Threaded
Тип обнаружения:
Рассеянный
Электрическое соединение:
4-контактный Разъем
