42EF-P2MPB-F4, Allen Bradley Retroreflective Photoelectric Sensor, Block Sensor, 3 m Detection Range IO-LINK, Фотоэлектрический датчик

Bulletin 42EF RightSight Miniature Photoelectric Sensors

Allen Bradley 42EF RightSight series photoelectric sensors are designed for light to medium level industrial use. The 42EF sensors take many of the features of larger solutions and put them in a smaller, more adaptable package to deliver excellent detection capabilities where size and shape matter. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
1200 psi washdown ratings
Available in 12 V dc to.24 V dc and universal AC-DC supply versions
360° visible indicators
Universal 18 mm mounting at base and nose
Short circuit protection

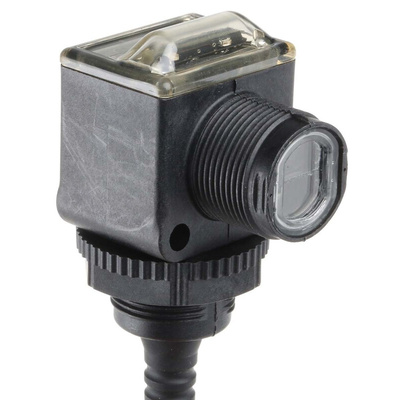

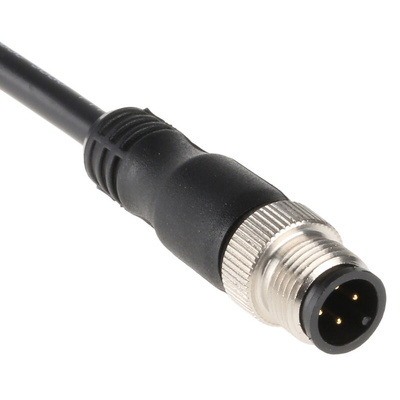

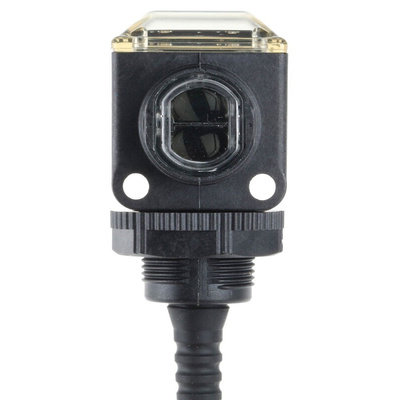

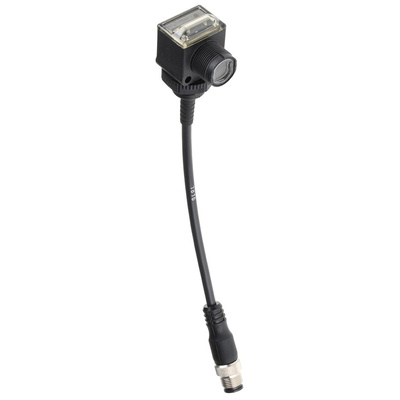

Allen Bradley Retroreflective Photoelectric Sensor, 3m Detection Range, 4-Pin Connector - 42EF-P2MPB-F4

Install this retroreflective photoelectric sensor from Rockwell Automation's Allen Bradley range for reliable object-sensing in automated processes. It's an electronic device that uses reflected light beams to detect, measure and count workpieces. Integrated IO-Link capabilities allow you to connect the unit to your control panel for rapid production-line feedback. You can also configure the device and plot trends with this functionality.

• Highly visible LEDs for status detection during setup, operation and maintenance
• Linear potentiometer adjustment for simple sensor configuration and proportional alignment
• Polymer housing resists abrasion and corrosion, making the product hardwearing
• Broad operating temperatures from -25°C to +70°C for use in harsh conditions
• IP69K (ingress protection) rating indicates complete shielding against dust and high-pressure water sprays for use with harsh conditions

Standards and Certifications

• CE (Conformitè Europëenne)
• CSA (Canadian Standards Association)
• RoHS (Restriction of Hazardous Substances)
• IEC (International Electrotechnical Commission)
• NEMA (National Electrical Manufacturers Association)

Does a retroreflective photoelectric sensor need a reflector?

Yes, this type of sensor needs a reflector to be installed opposite the device. You need to correctly align the photoelectric sensor and reflector to obtain accurate measurements and readings.
