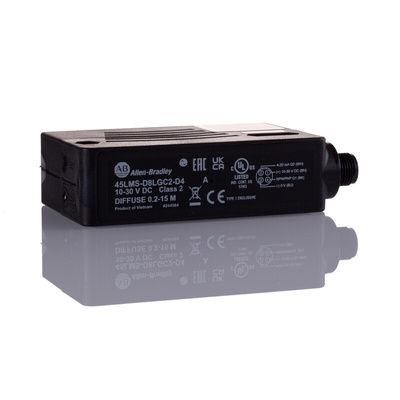

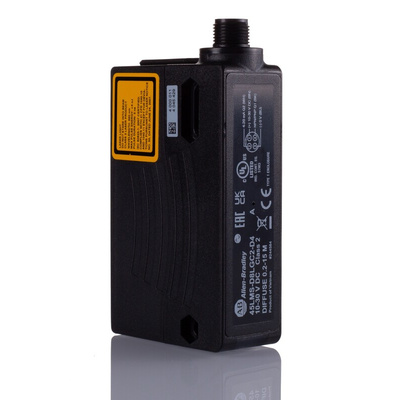

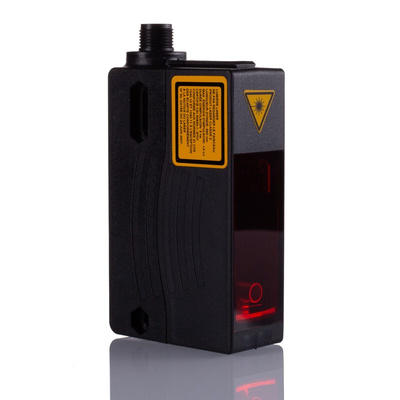

45LMS-D8LGC2-D4, Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 200 mm → 15 m Detection Range IO-LINK, Фотоэлектрический датчик

45LMS Laser Measurement Sensors

Allen Bradley 45LMS laser measurement sensors offer an excellent mid to long range measurement solution. Available in three ranges, these sensors use the Time of Flight (ToF) principle and has a relatively small beam spot, even from a distance of 50 m. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Includes diffuse range: 8 m (Class 1 laser); 15 m (Class 2 laser)
One discrete output (1 x NPN/PNP) and one analogue output (1 x 4...20 mA)
Accurate to ± 24 mm (±0.98 in.)
Provides fast response time of 10 ms

Allen Bradley Photoelectric Sensor, Laser Measurement, 70mA Maximum Current - 45LMS-D8LGC2-D4

Need to detect objects over long distances in your industrial system? Go for this photoelectric sensor from Rockwell Automation's Allen Bradley range. Thanks to a versatile detection range of 200mm to 15m, it's a good choice for measuring roll diameters or crane crash protection. The embedded IO-Link functionality means you can send data directly from the sensor to your control system. This helps to reduce your inventory and increase your uptime for productivity.

Features & Benefits

• IP65-rated enclosure is dust-tight and protected against water jets from any direction
• Reliably fast response time of 10ms
• Lockable settings for convenience, so user changes won't alter the unit's parameters
• Self-contained and doesn't need external control devices, which saves mounting space
• Wide operating temperature range of -30°C to +50°C for safe performance in harsh settings

Standards and Certifications

• CE
• CSA
• NEMA
• RoHS
• IEC
• UL

Can this sensor detect more than one type of object?

Yes, you can programme this sensor to detect multiple profiles. This means you can swap products instantly without the inconvenience of having to reset the device.
