45CRM-4LHT2-D4, Allen Bradley Colour Sensors 11 mm, RGB LED IO-Link, NPN/PNP x 2, 60 mA, 10 → 30 V dc, IP67, Датчик цвета

45CRM Colour Registration Mark Sensors

Allen Bradley 45CRM colour registration mark sensors have a high-speed response time and emit three LED colours (red, green and blue) to discern the difference in colour response between the mark and background. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication
Provides fast 40 μs response time
Dynamic teach and static teach methods
2 x PNP/NPN (push-pull) outputs
Compact size

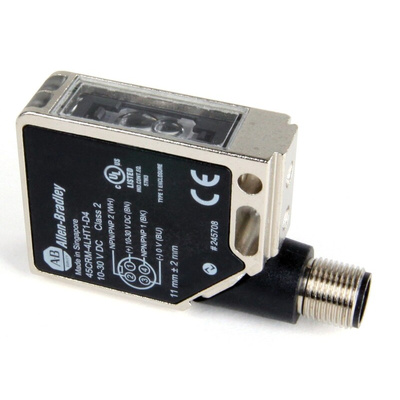

Allen Bradley Colour Sensor, 11mm Detection Range, IO-Link - 45CRM-4LHT2-D4

This colour sensor from Rockwell Automation's Allen Bradley range scans the surfaces of objects to ensure they match a pre-set colour. It projects red, green and blue LED lights and measures the differences in their reflections to determine the object's colour. A fast response time of 40μs (microseconds) ensures quick colour detection to reduce downtime and improve efficiency. Thanks to its broad operating temperature range of -20°C to +60°C, this device is suitable for use in demanding industrial environments.

• Die-cast zinc housing material is corrosion-resistant for long-lasting performance
• IP67 (ingress protection) rating for protection against dust and submersion in 1m of water for up to 30 minutes
• Rotary switch to easily adjust sensitivity rate

Standards and Certifications

• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories in Canada and the US)

What's the difference between a colour sensor and a contrast sensor?

A colour sensor like this unit is specifically designed to read the colour of an object, while a contrast sensor measures the differences in the shades of a colour compared to a pre-set value.
